Installing the Dipole Antenna

When the terminal is ordered with a Wireless Antenna, the Dipole Antenna is not attached. To install the Dipole Antenna, follow these steps:

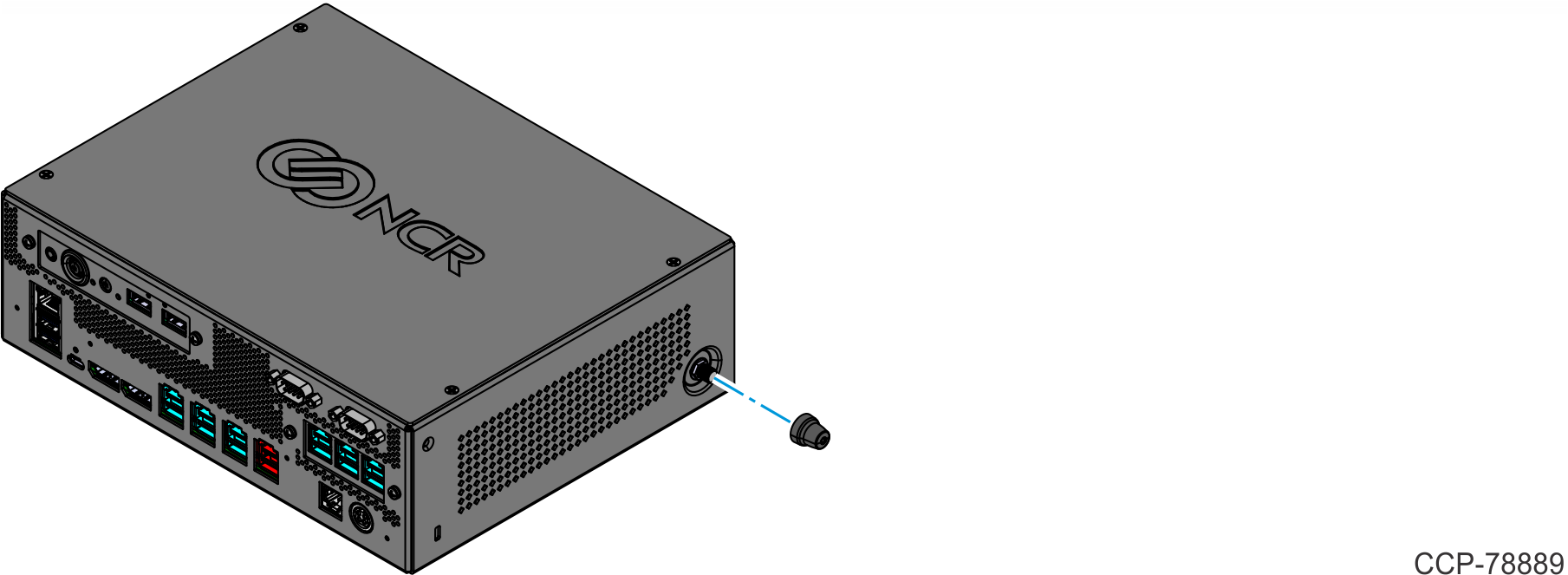

1. Remove the cover from the Wireless connector.

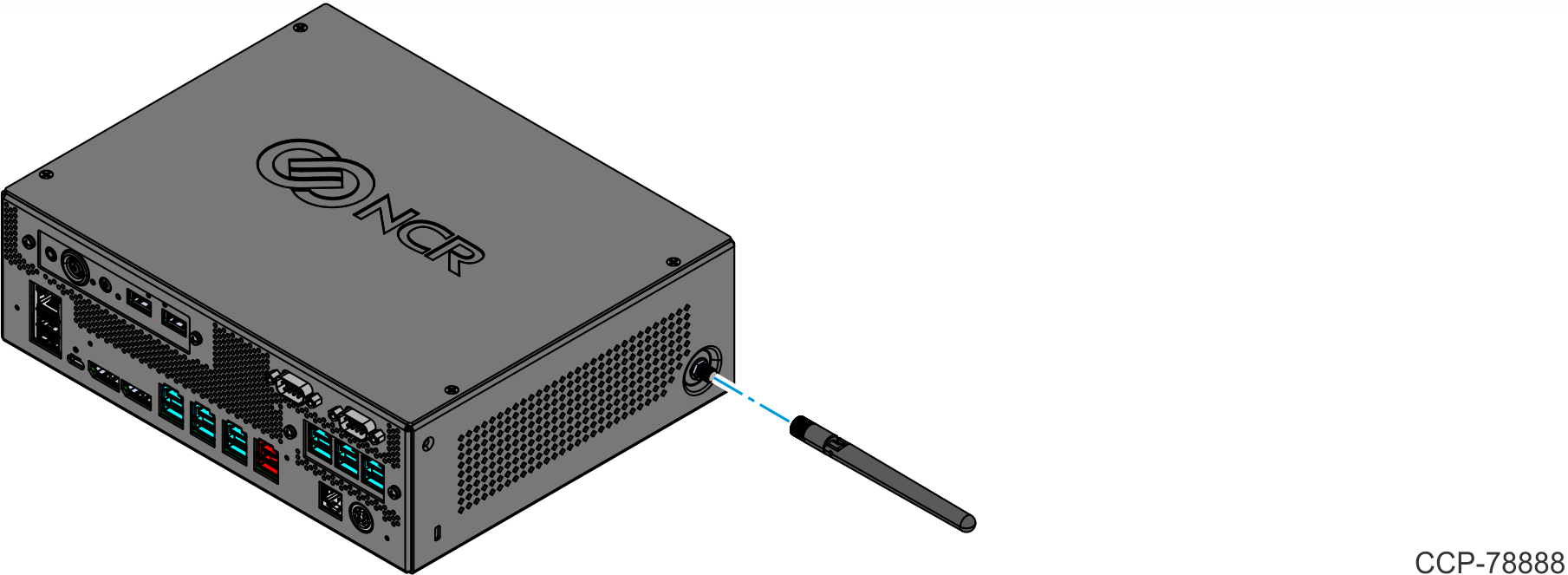

2. Screw the Dipole Antenna onto the Wireless connector.



3. Orient the Dipole Antenna as needed.
