24V USB + Power

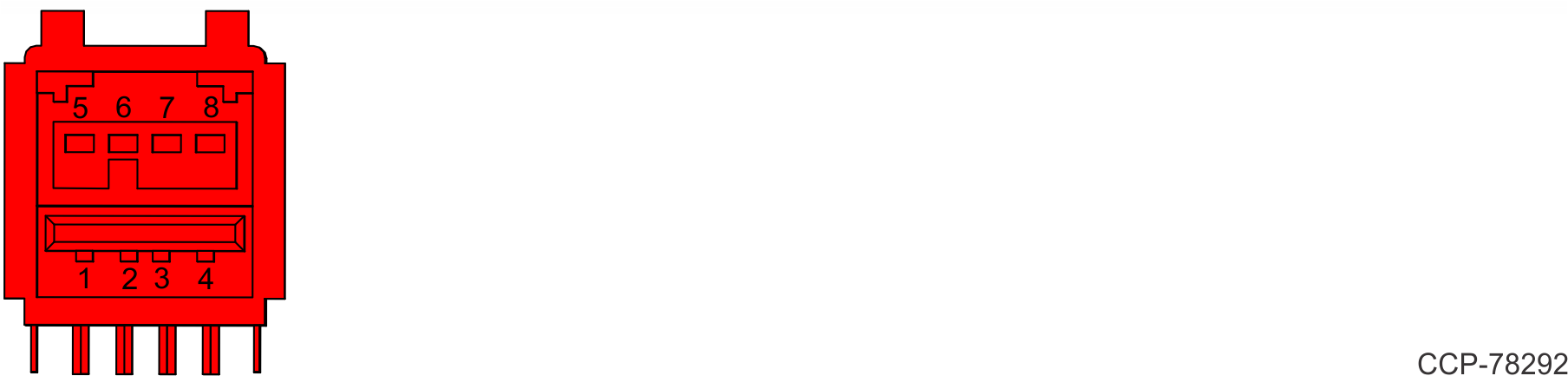

The Motherboard provides one latching 24V Powered USB port. The 24V Powered USB port is capable of supplying 24V at 2.3A continuous and 3.0A peak. The connector color is red.
The 24V is fused with a resettable fuse. An overcurrent signal is used to detect when this fuse is open. This signal is connected to a GPIO on the Super I/O.
A 1.75A self-healing poly fuse protects the +5V of the port. An overcurrent signal is used to detect when this fuse is open. The signals are connected to overcurrent inputs/GPIO on the PCH.
| Signal Name | Pin | Pin | Signal Name |
|---|---|---|---|
| USB PWR | 1 | 5 | 24V_RET |
| USB D– | 2 | 6 | +24V |
| USB D+ | 3 | 7 | +24V |
| GND | 4 | 8 | 24V_RET |
| FRAME GND | 9 | 10 | FRAME GND |
| FRAME GND | 11 | 12 | FRAME GND |
