Cash Drawer Cables
The terminal supports a 2-drawer configuration with a Dual Cash Drawer Cable. Connect this cable to the terminal or transaction printer cash drawer connector.
Note: When connecting a single 12V legacy cash drawer, the 1432–C517–0009 cable is required to be used.
|
Product ID |
Description |
Configuration Notes |
|---|---|---|
|
1432-C516-0009 (24V) |
24V cash drawer cable splitter |
Required when connecting dual 24V cash drawers |
|
1432-C517-0009 (12V) |
12V cash drawer cable splitter |
Required when connecting single or dual 12V legacy cash drawer(s) |

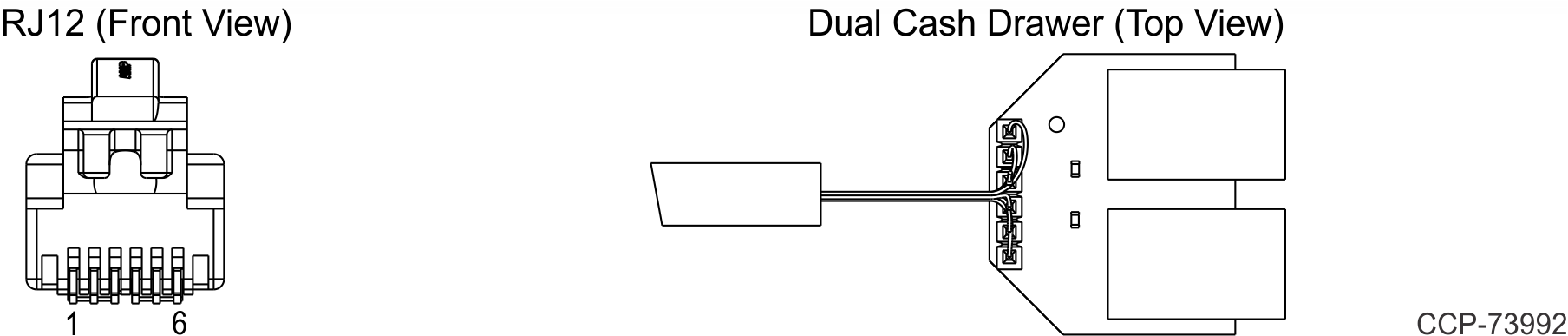

24V Cash Drawer Cable Splitter (1432-C516-0009)
|
RJ12 Pin |
Color |
Signal Name |
Dual Cash Drawer |
|---|---|---|---|
|
1 |
Blue |
Frame GND |
1 |
|
2 |
Yellow |
Kick-out Signal |
2 |
|
3 |
Green |
Open/Close Status |
3 |
|
4 |
Red |
+24V |
4 |
|
5 |
Black |
Kick-out Signal 2 |
5 |
|
6 |
White |
Signal GND |
6 |
12V Cash Drawer Cable Splitter (1432-C517-0009)
|
RJ12 Pin |
Color |
Signal Name |
Dual Cash Drawer |
|---|---|---|---|
|
1 |
Blue |
N/C |
1 |
|
2 |
Yellow |
CD Kick-out Signal A |
2 |
|
3 |
Green |
CD Open Con |
3 |
|
4 |
Red |
N/C |
4 |
|
5 |
Black |
CD Kick-out Signal B |
5 |
|
6 |
White |
Signal GND |
6 |
