RJ12 Cash Drawer Port

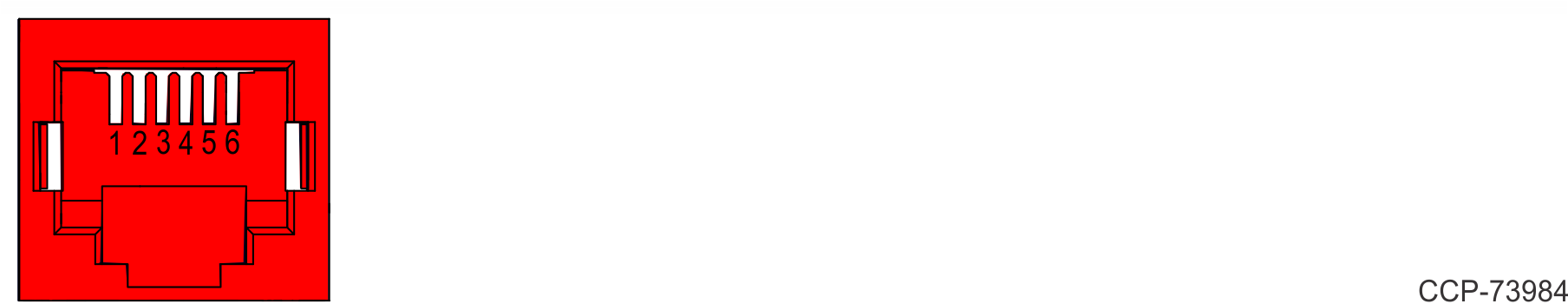

A single 6-position RJ12 connector is used supporting dual +12V or +24V cash drawer. The color of the connector is red.
|
Pin |
Signal Name |
|---|---|
|
1 |
Logic GND |
|
2 |
Solenoid A |
|
3 |
Drawer A/B Open/Close Status |
|
4 |
+24V |
|
5 |
Solenoid B |
|
6 |
Power GND |
