RJ45 Serial Port

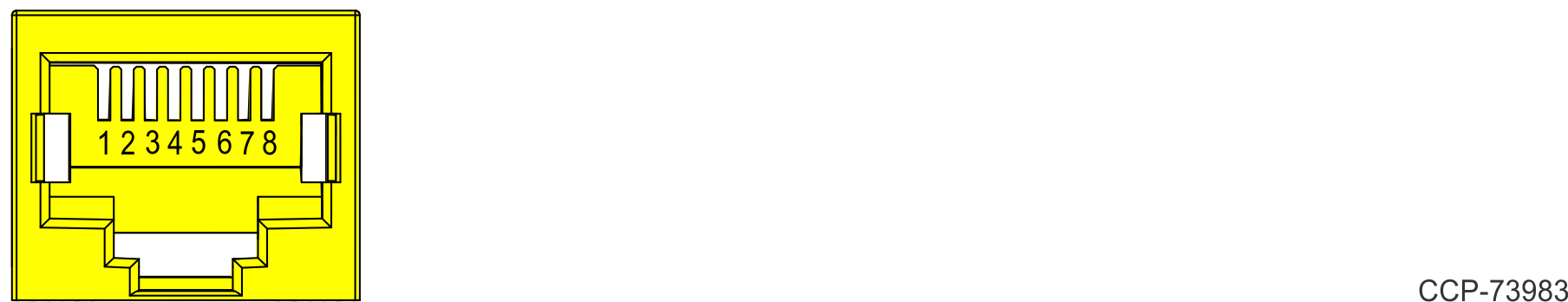

The RJ45 port is an unshielded 8-pin “tab down” RJ45 connector. The color of the connector is yellow.
Current limiting power switches provide 12V on the RTS pin with a limit current of 0.5A, and 5V on the DTR pin with a limit current of 1A.
|
Pin |
Signal Name |
|---|---|
|
1 |
DSR |
|
2 |
DCD |
|
3 |
DTR/5V |
|
4 |
GND |
|
5 |
RX |
|
6 |
TX |
|
7 |
CTS |
|
8 |
RTS/12V |
