Flip Functionality

The flip functionality is a feature that detects and automatically adjusts the screen orientation depending on the device position.

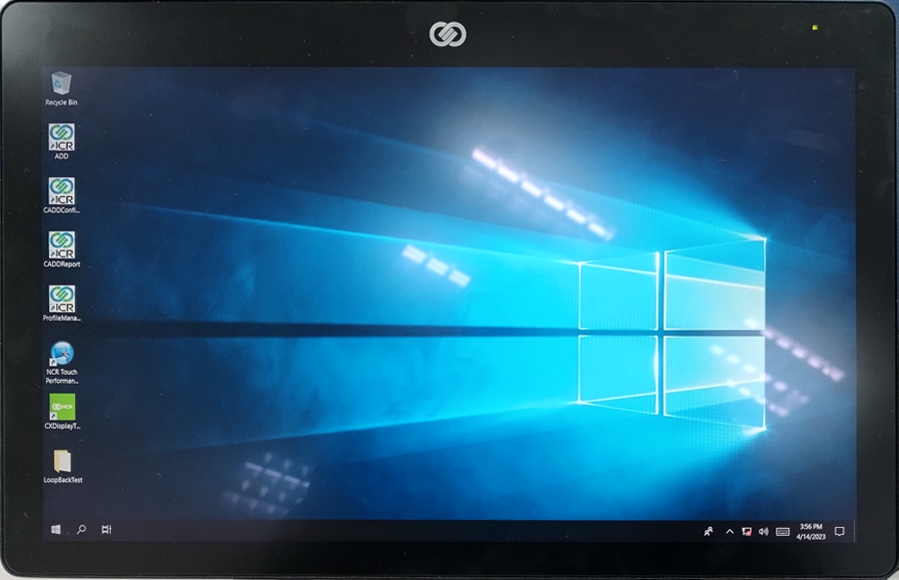

Default Screen Orientation

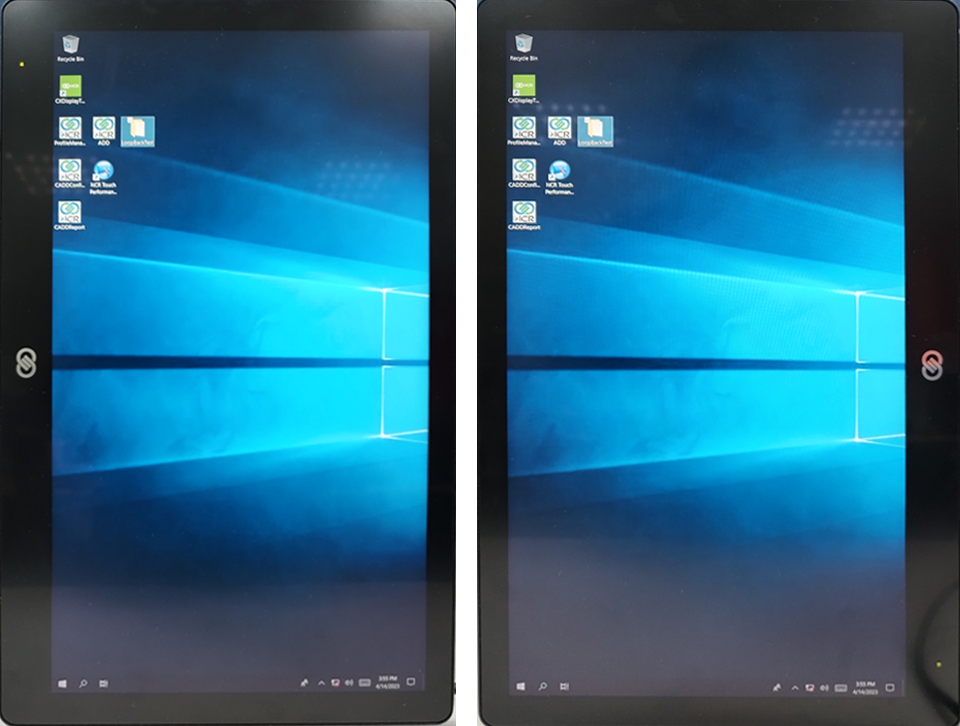

Flipped Sideways

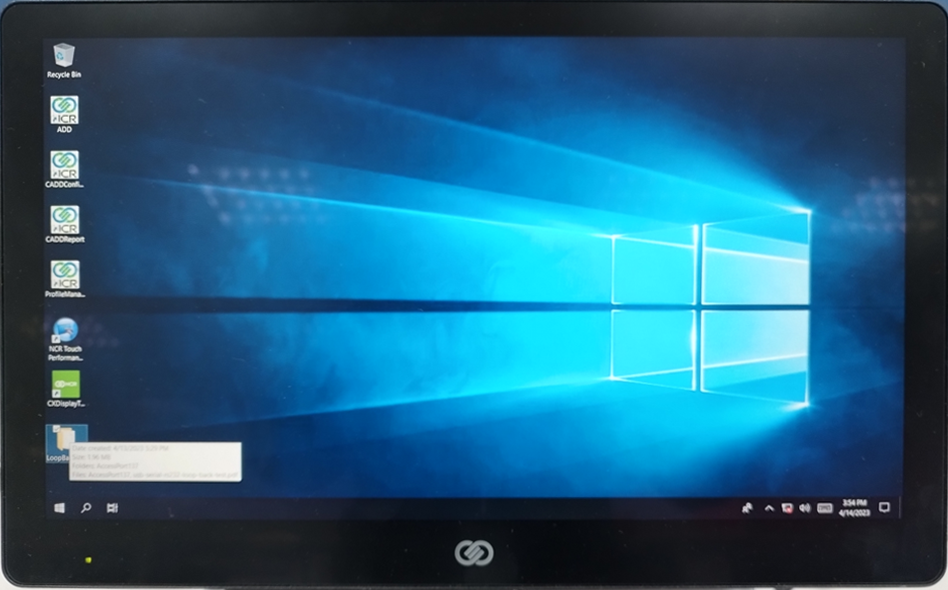

Flipped Upwards

To enable the flip functionality, the G-Sensor driver must be installed. The NCR OS Image includes a pre-installed G-Sensor driver. The driver can be found in the C:\Install\drivers\G-Sensor directory. If not using an NCR OS Image, follow these steps:

1. Download the G-Sensor driver from the NCR website: https://www5.ncr.com//support/support_drivers_patches.asp?Class=External/GSensor\Windows\Driver
2. Right-click on Setup.exe
3. Select Run as administrator.
4. Follow the GUI instructions to complete the installation.
