Wall Mount Power Supply Bracket

Introduction

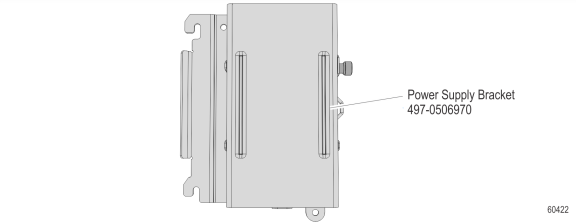

This kit provides a bracket to mount a P1535/P1235 power supply on a vertical surface.

Installation Procedure

1.Secure the Power Supply Bracket on a vertical surface with the proper type of screws (2) for the surface type. Use the dimensions shown below or use the bracket as a template to mark the location of the holes.

Note:  The power supply bracket is assumed to be mounted independently from the Mount. For more information on mounting power supply brackets with mount plates, refer to the 7761-K001 and 7761-K003 kit instructions.



2.Insert the power supply into the bracket (AC Connector on top).

3.Replace the front cover of the bracket.

4.Secure the bracket with the thumbscrew and the AC Power Cord with a cable tie.
