Reprogram the Note Acceptor RTU as SCN85 Device

To reprogram the Note Acceptor do the following:

1.Remove the Note Acceptor from the Cash Acceptor Chassis. For more information refer to Remove the Note Acceptor.

2.Install SCN85 Cash Acceptor to the Cash Acceptor Chassis. For more information refer to Install SCN85 Cash Acceptor.

3.Turn on the SelfServ Checkout.

4.Go to C:\scot\bin.

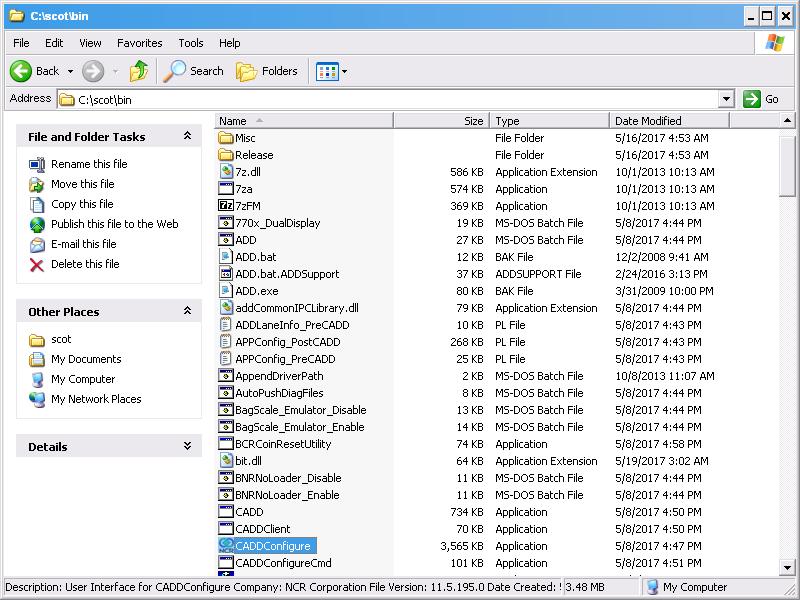

5.Open the CADDConfigure application. The Hardware Type window is displayed.

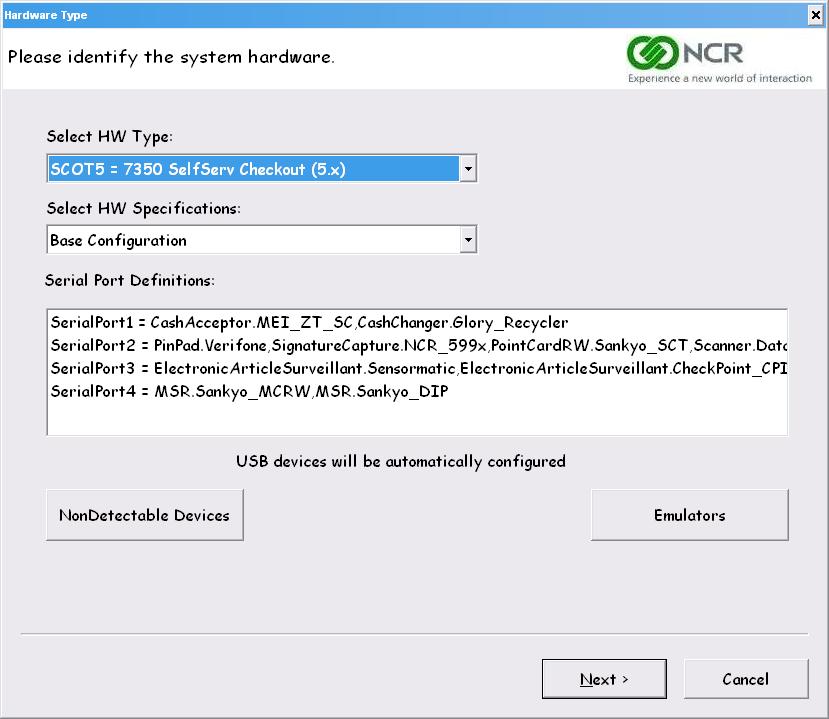

6.From the Select HW Type drop-down list, select SCOT5 = 7350 SelfServ Checkout (5.x).

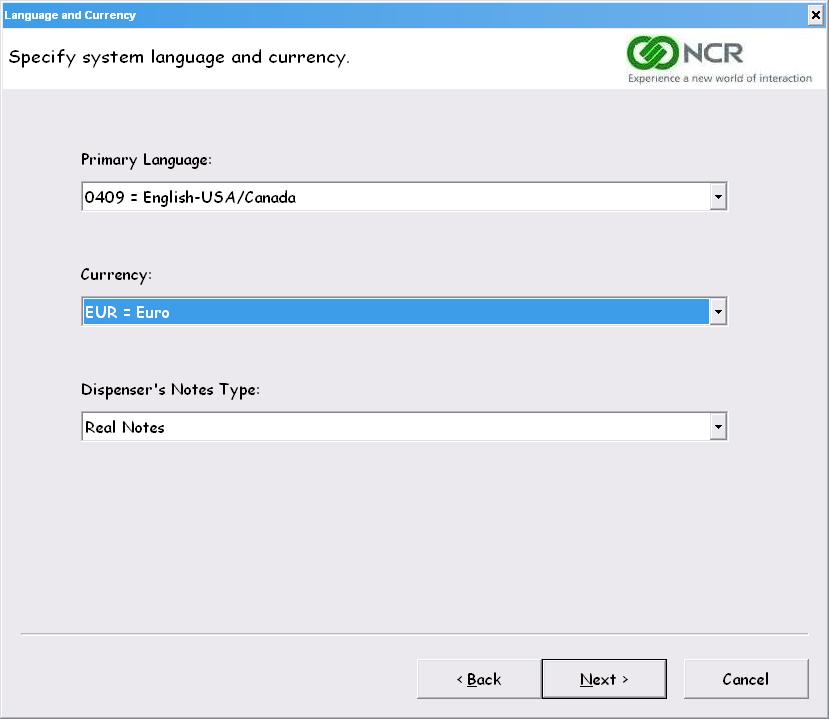

7.Select Next. The Language and Currency window is displayed.

8.From the Currency drop-down list, select EUR = Euro.

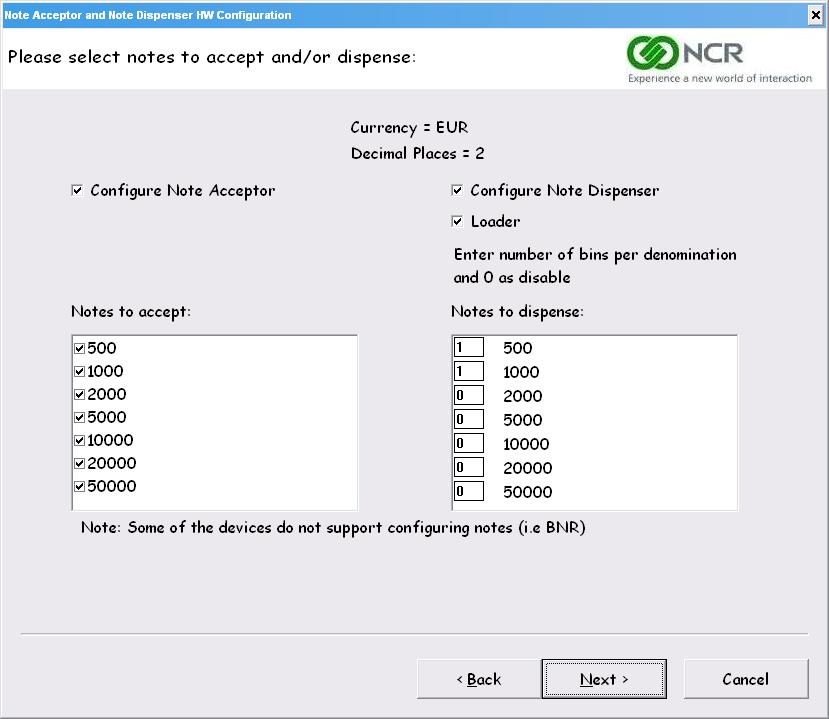

9.Select Next. The Note Acceptor and Note Dispenser HW Configuration window is displayed.

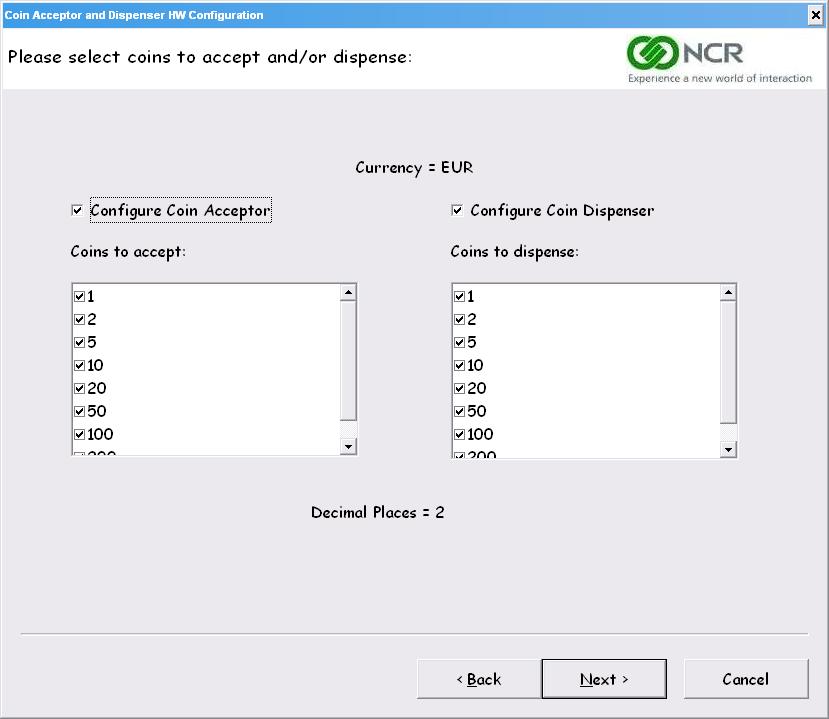

10.Select Next. The Coin Acceptor and Dispenser HW Configuration window is displayed.

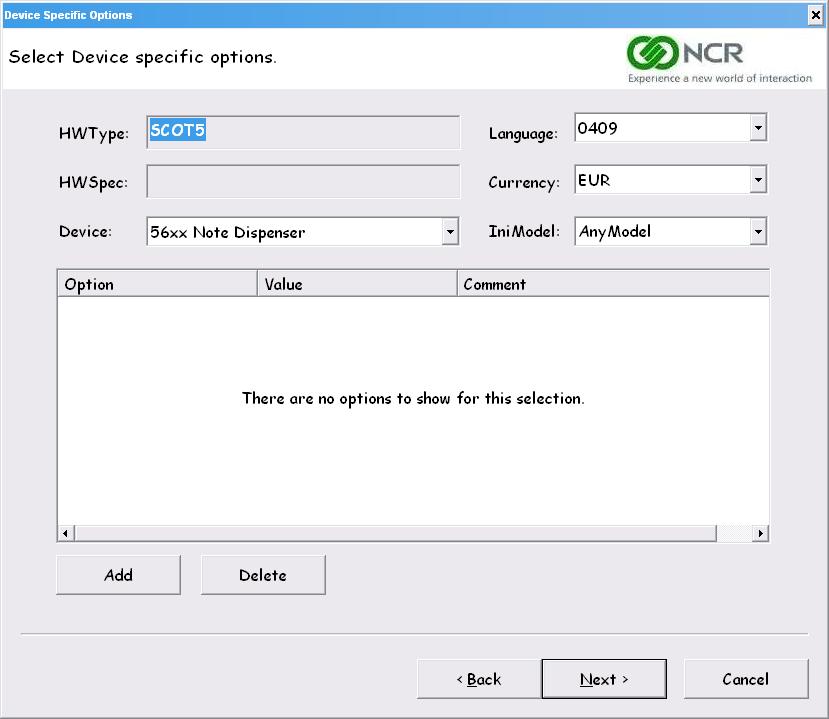

11.Select Next. The Device Specific Options window is displayed.

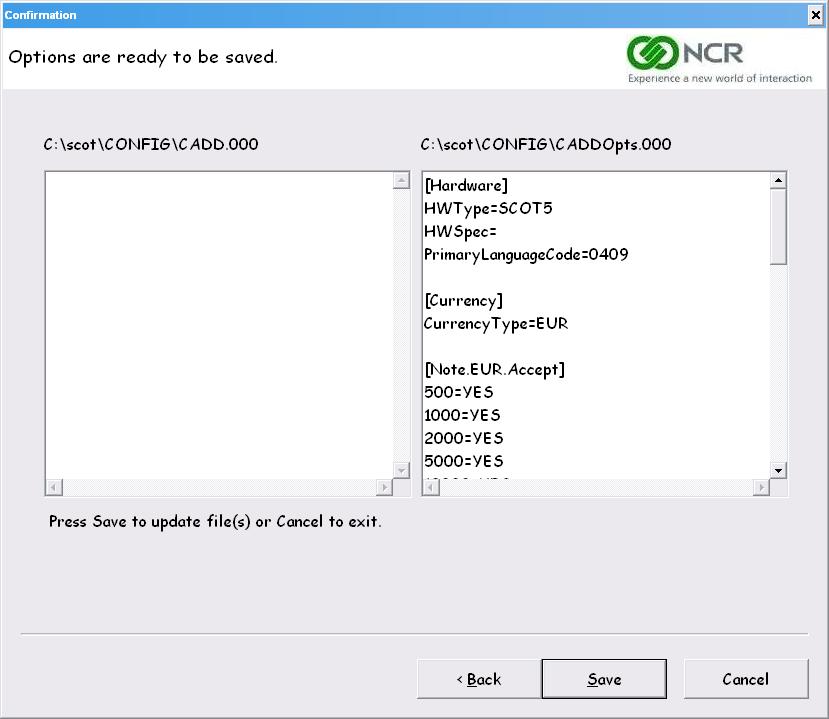

12.Select Next. The Confirmation window is displayed.

13.Select Save to update the files. The application will automatically close.

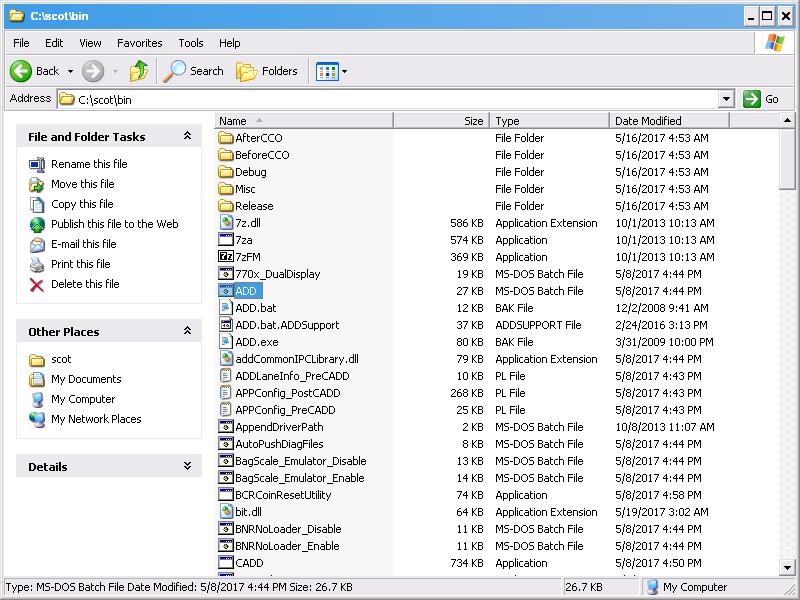

14.Go to C:\scot\bin and then open ADD. The application checks the devices configured with the SelfServ Checkout unit and checks/updates the corresponding firmware. The application is automatically closed when the process is complete.

Caution:  Do not interrupt the configuration to avoid damaging the device.

15.Perform a health check on the Note Acceptor by accessing the Profile Manager Lite (PML). To access the PML, do the following:

a.From the start menu, select Run and type :\scot\bin\elgnodon.bat. Then the PML screen is displayed.

b.Select CashAcceptor on top section of the PML screen.

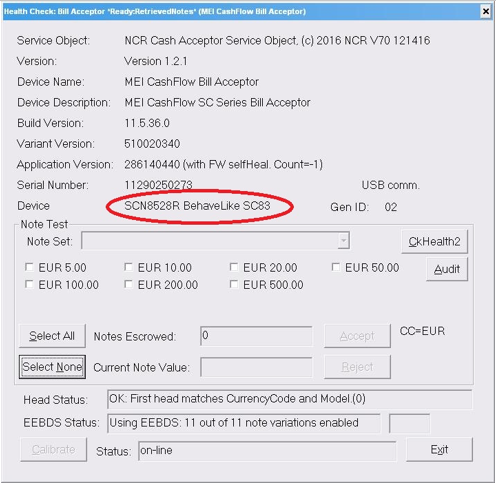

c.Select MEI_ZT_SC on the bottom section of the PML screen. The Health Check: Bill Acceptor screen appears.

d.Verify from the Device field that the device model has changed from SC to SCN.

16.Restart the 7350 unit.

Note:  The system automatically runs ADD and update the Note Acceptor hardware profile.
