Installing Hook Bracket

To install the Hook Bracket to the Core Door Hinge, follow these steps:

1.Remove the existing hook bracket, if necessary. For more information, refer to Removing Hook Bracket.

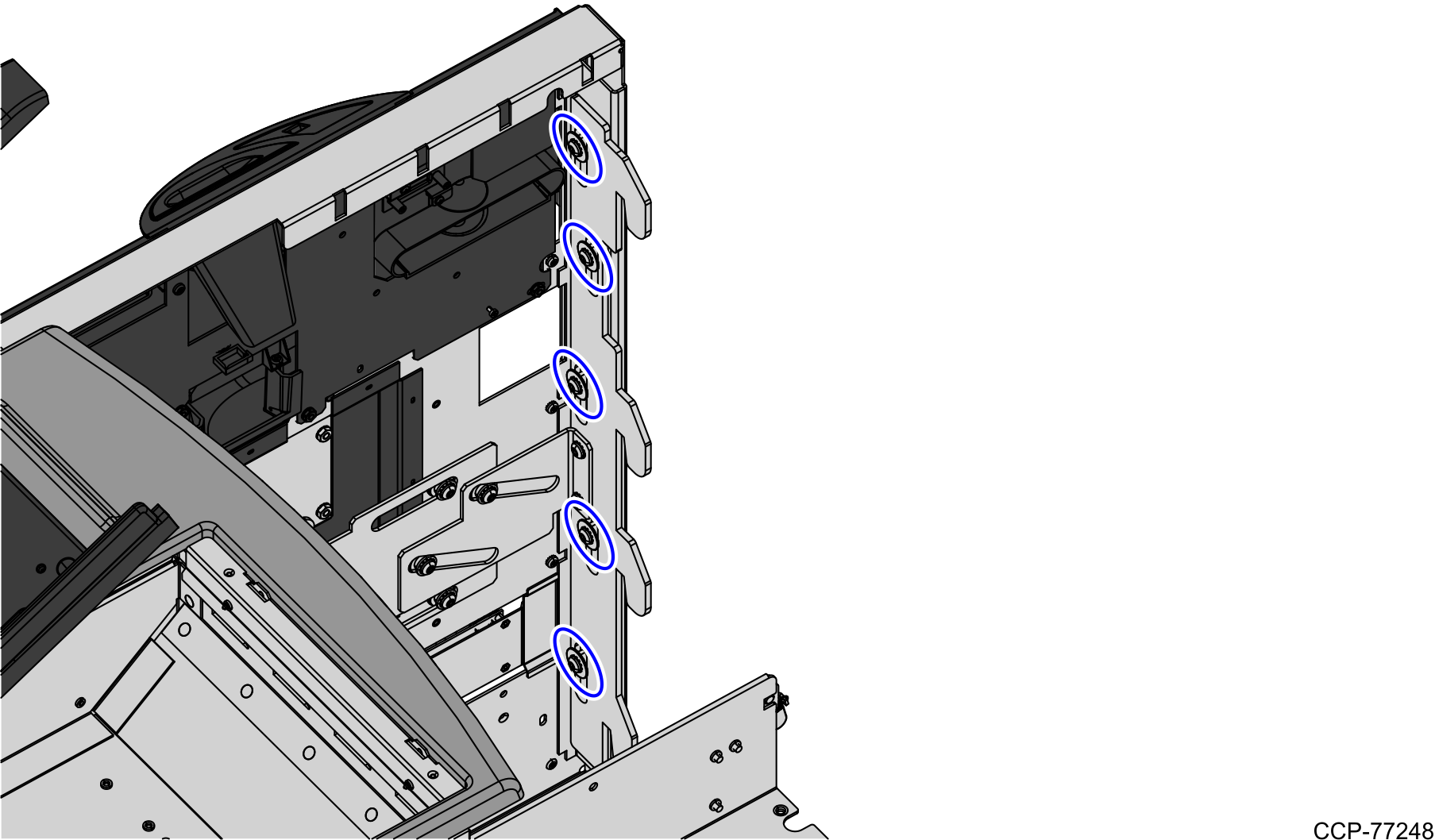

2.Secure the hook bracket to the Core Door using five (5) sets of hex drive screws, tooth washers and flat washers, as shown in the image below.

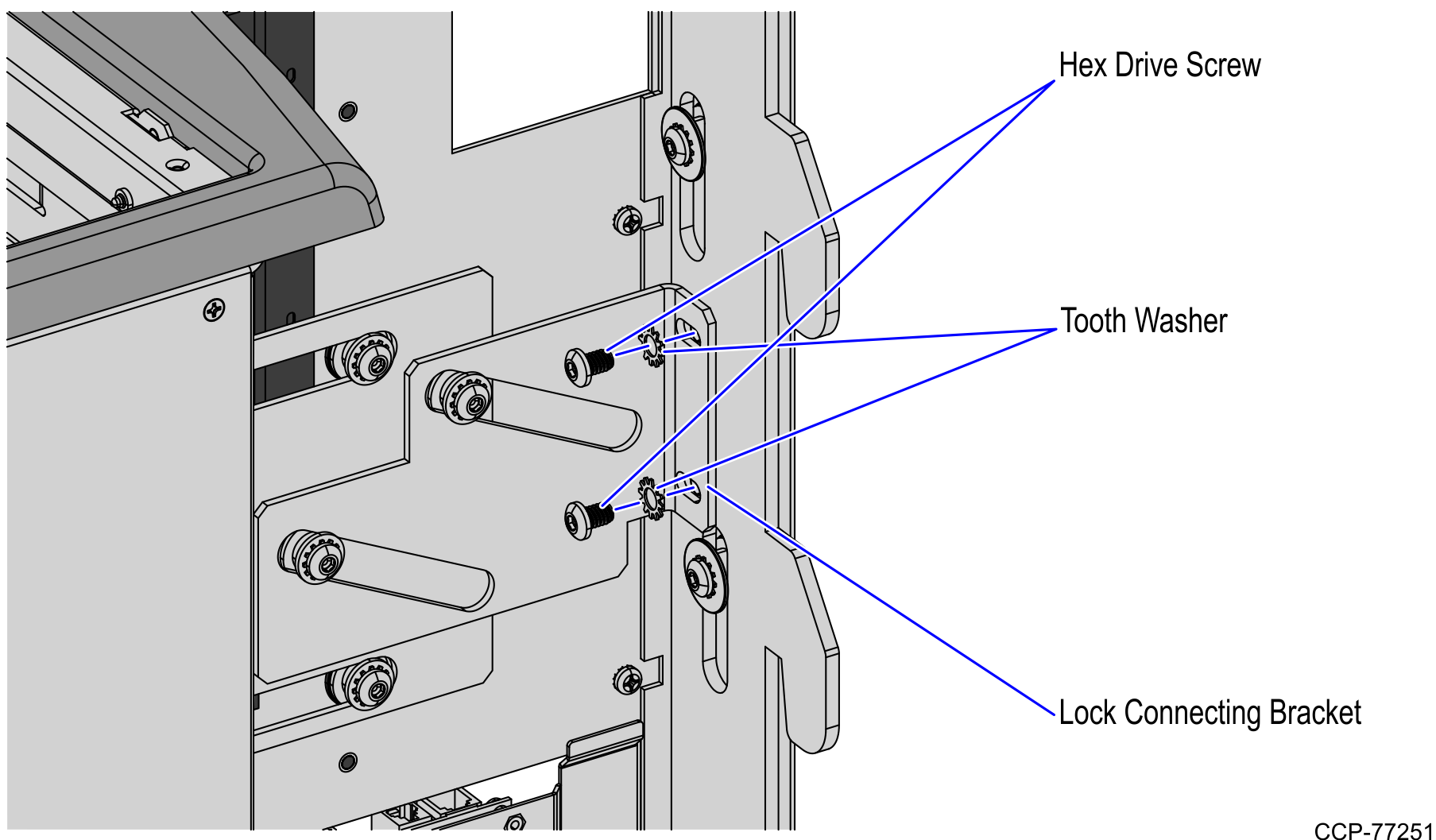

3.Secure the lock connecting bracket to the hook bracket using two (2) sets of hex drive screws and tooth washers, as shown in the image below.
