Routing System Power Supply Cables

To route the System Power Supply cables, follow these steps:

1.Install the System Power Supply. For more information, refer to Installing the System Power Supply.

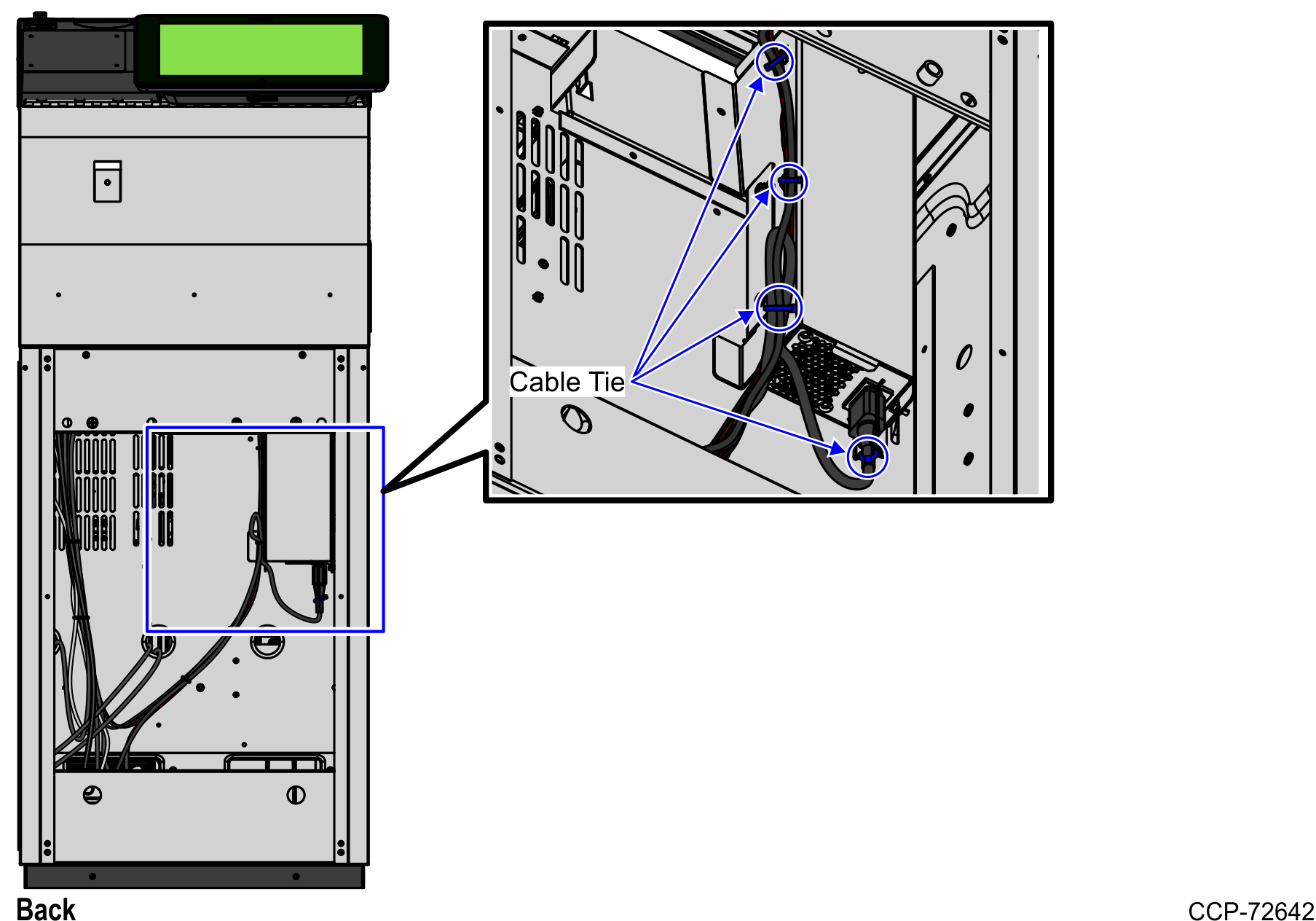

2.Secure the cables to the System Power Supply chassis using cable ties as shown in the image below.

3.Route and sort cables. For more information, refer to Routing System Power Supply Cables.

Note:  For more information about routing cables, refer to the SCO Release 6 Lite Cable Routing Instructions (497-0519586).
