Installing NRI Eagle Coin Acceptor in Plastic BCR (BCR 206)

Installing NRI Eagle Coin Acceptor

To install the NRI Eagle Coin Acceptor, follow these steps:

1.Unlock and open the SelfServ Checkout door.

2.Lift the green latch and pull to extend the Coin Recycler from the unit.

3.Disconnect the System Power cable from the Coin Recycler control board.

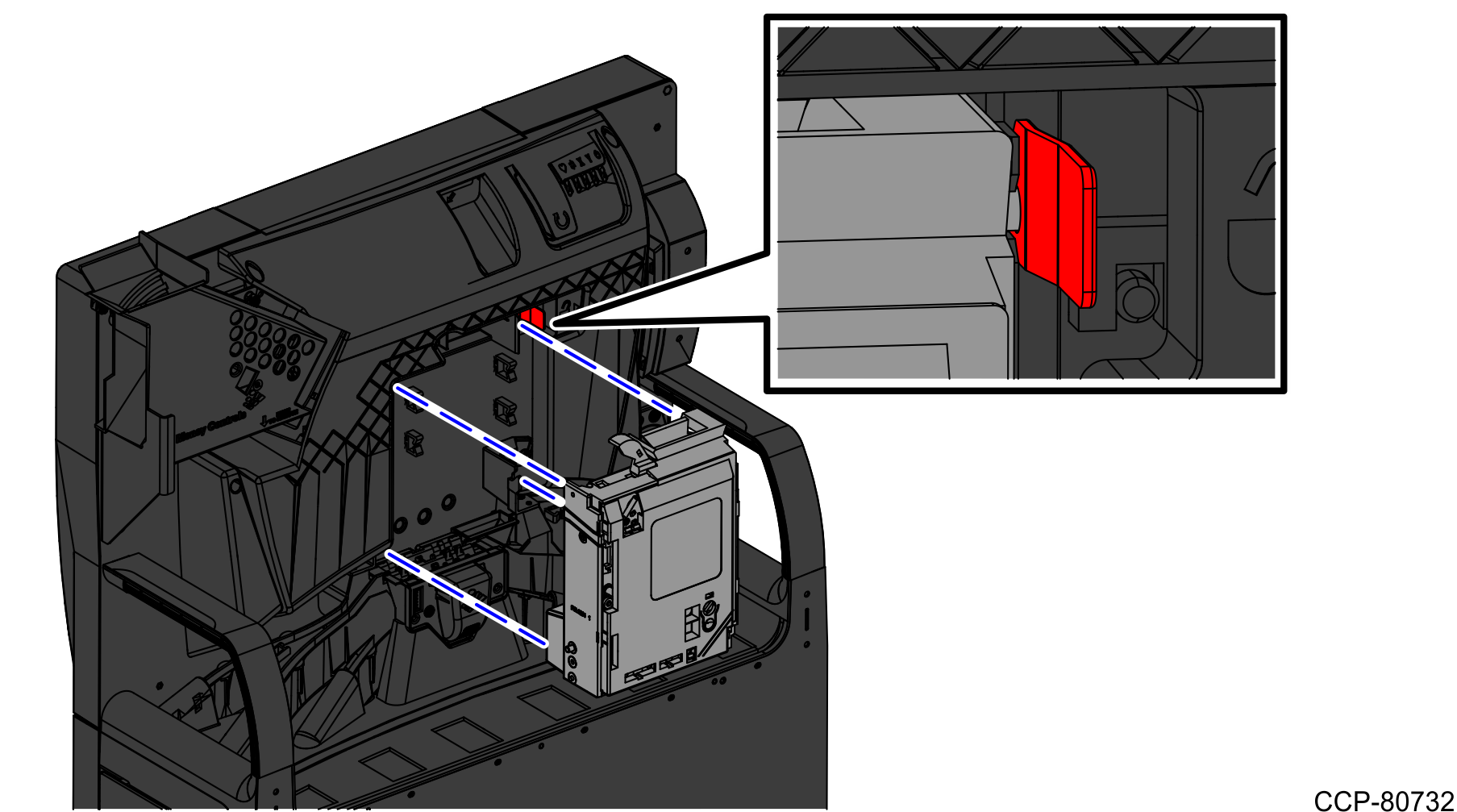

4.Release the red tab on the right side of the Coin Acceptor and pull acceptor toward you.

5.Lift Coin Acceptor out of opening in Coin Recycler cover.

6.Remove the two cables from the Coin Acceptor (A and B).

7.Insert the NRI Eagle Coin Acceptor into the Coin Recycler unit.

Note:  Ensure that the NRI Eagle Coin Acceptor is aligned with the guides on the BCR and that it is secured in place by the red tab.

8.Attach cables to the NRI Eagle Coin Acceptor.

9. Re-connect Connect the System Power cable to the Coin Recycler control board.

10.Connect the cables. For more information, refer to Routing Cables.

11.Push the Bulk Coin Recycler back to the Core Cabinet.

12.Close and lock the SelfServ Checkout Core Door. For more information, refer to Closing the Core Door.
