Installing NCR Terminal Display

To install the NCR Terminal Display, follow these steps:

1. Remove the existing Terminal Display, if necessary. For more information, refer to Removing NCR Terminal Display.
2. Connect cables to designated ports on the Display.

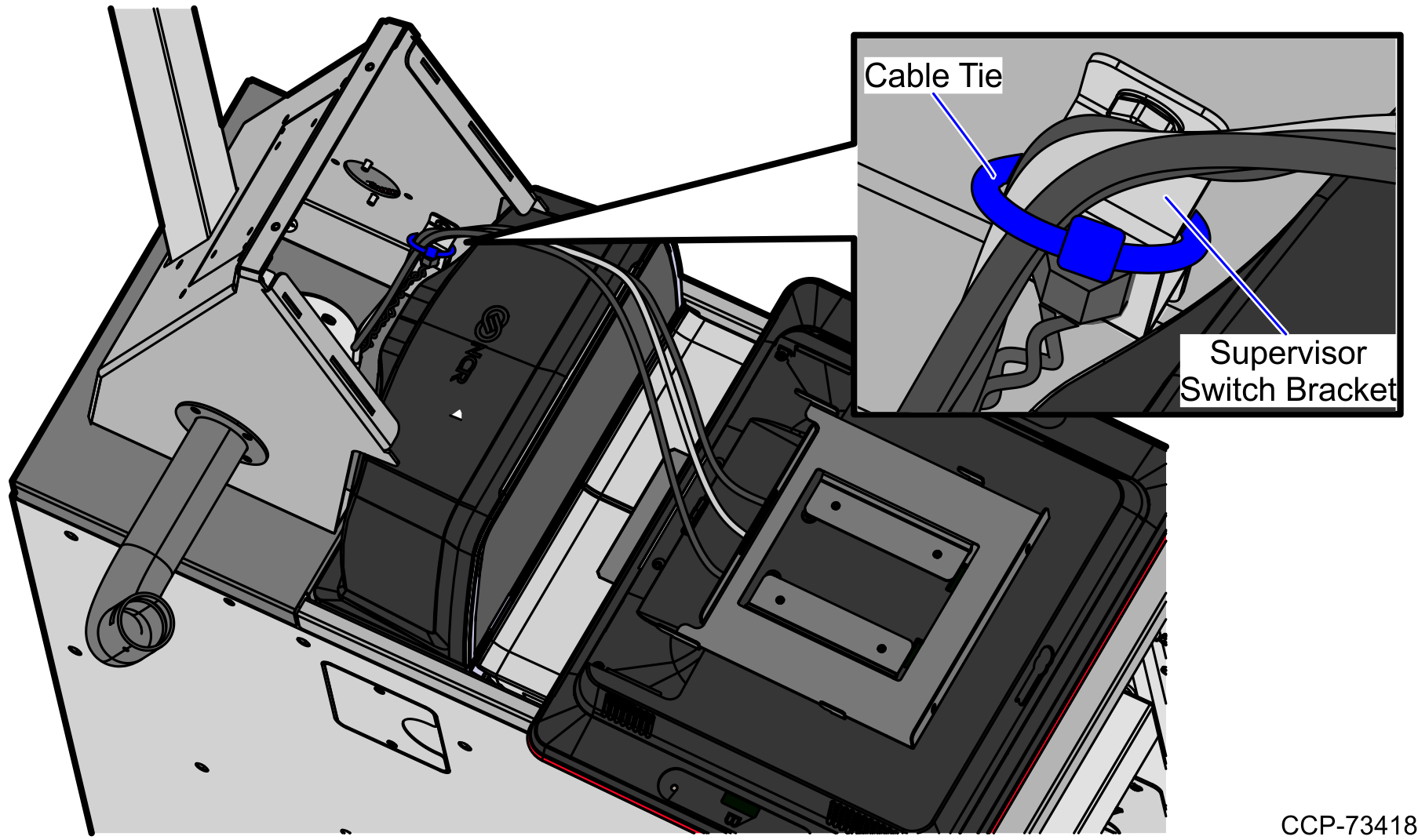

3. Using cable ties, secure the cables on the Supervisor Switch bracket and then route the cables down into the back of the unit through the hole in the base mount.
   Note

   The Supervisor Button cable is also routed with the Display cables.



   Note

   For more information about routing cables, refer to SCO R6 Lite (Narrow Core) Routing Instructions (497-0520486).

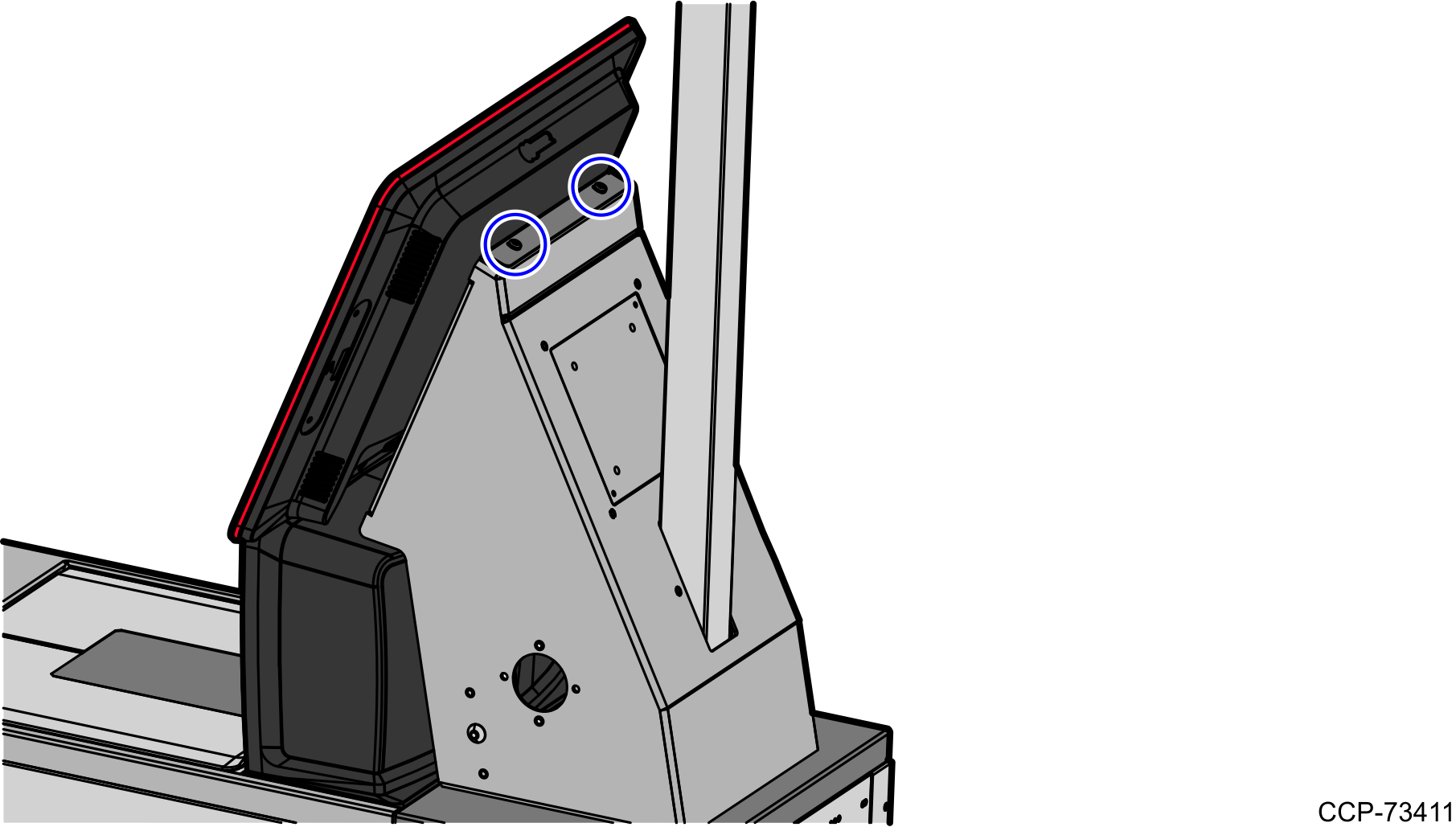

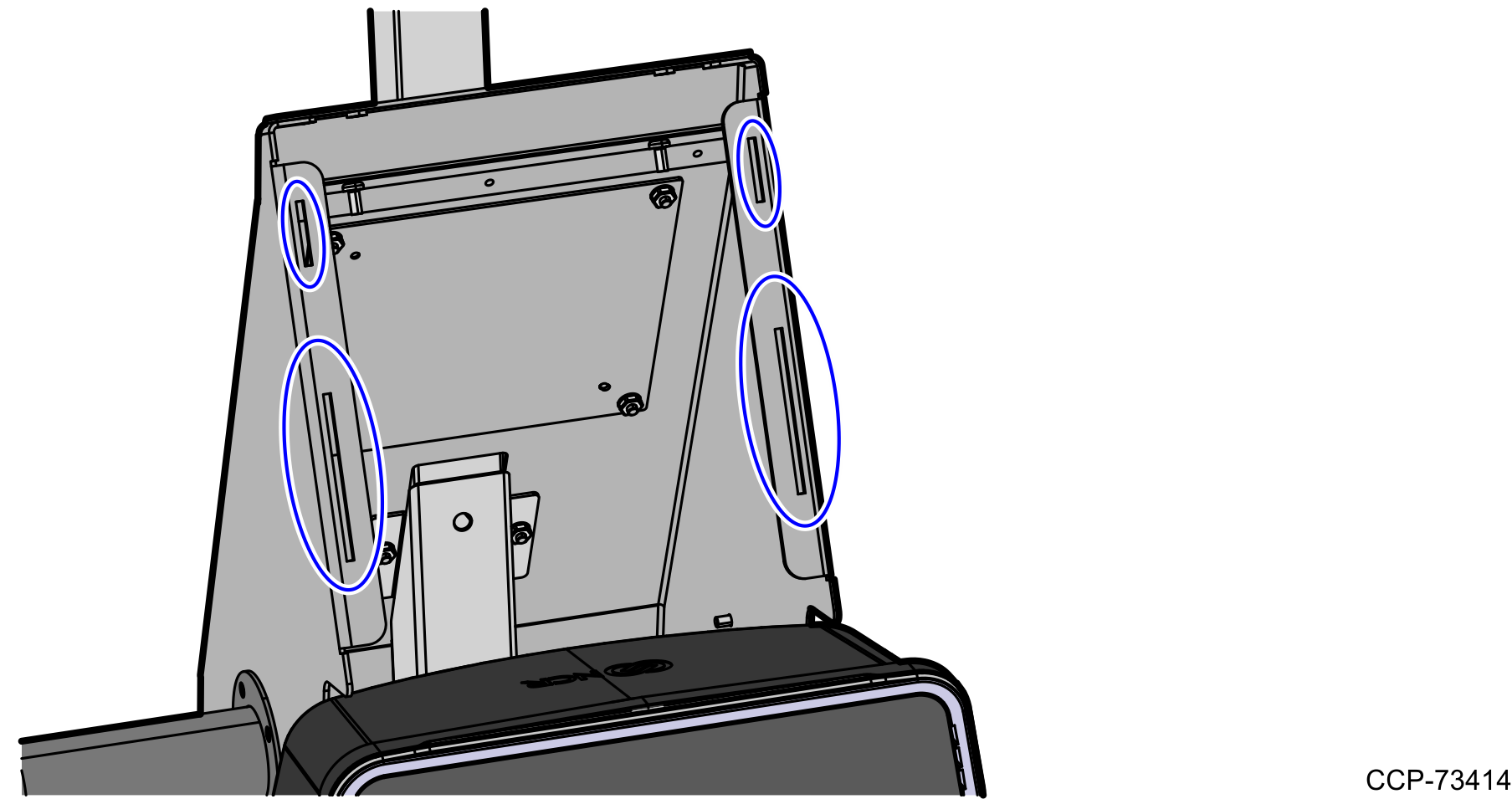

4. Align hooks on the Display Mounting Bracket to the holes in the Tower Frame and slide down the Display to lock in place.



5. Secure the Display with the Display Mounting Bracket to the Tower Frame using two screws.
