Installing GSR50 Recycler Stacker Lock

To install the GSR50 Recycler Stacker lock, follow these steps:

1.Access the GSR50 Note Recycler.

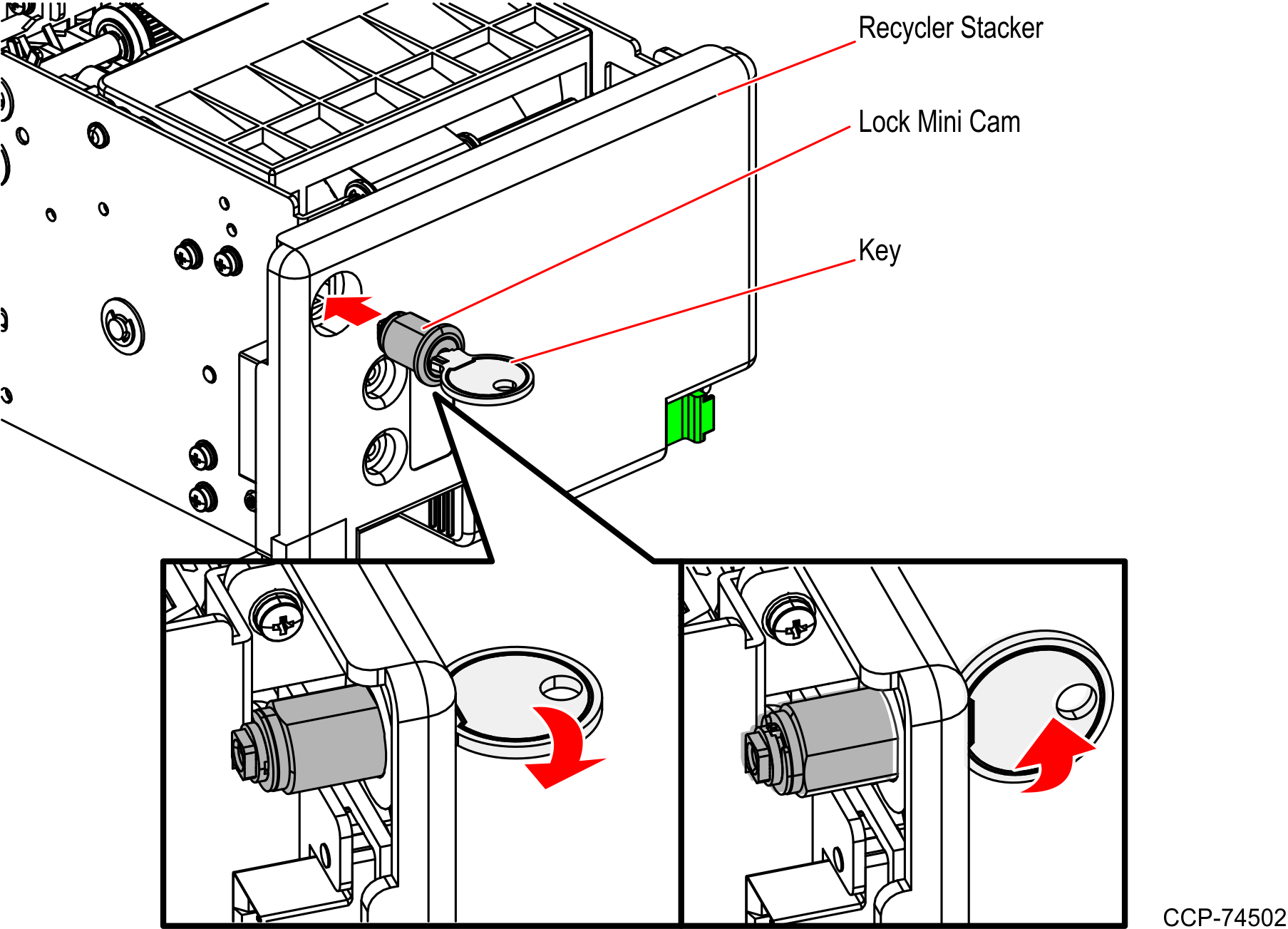

2.Insert the Lock Mini Cam with Key in a horizontal position into the corresponding hole on the front of the Stacker, as shown in the image below.

Note:  Ensure that the key can rotate to 1/4 turn counterclockwise.

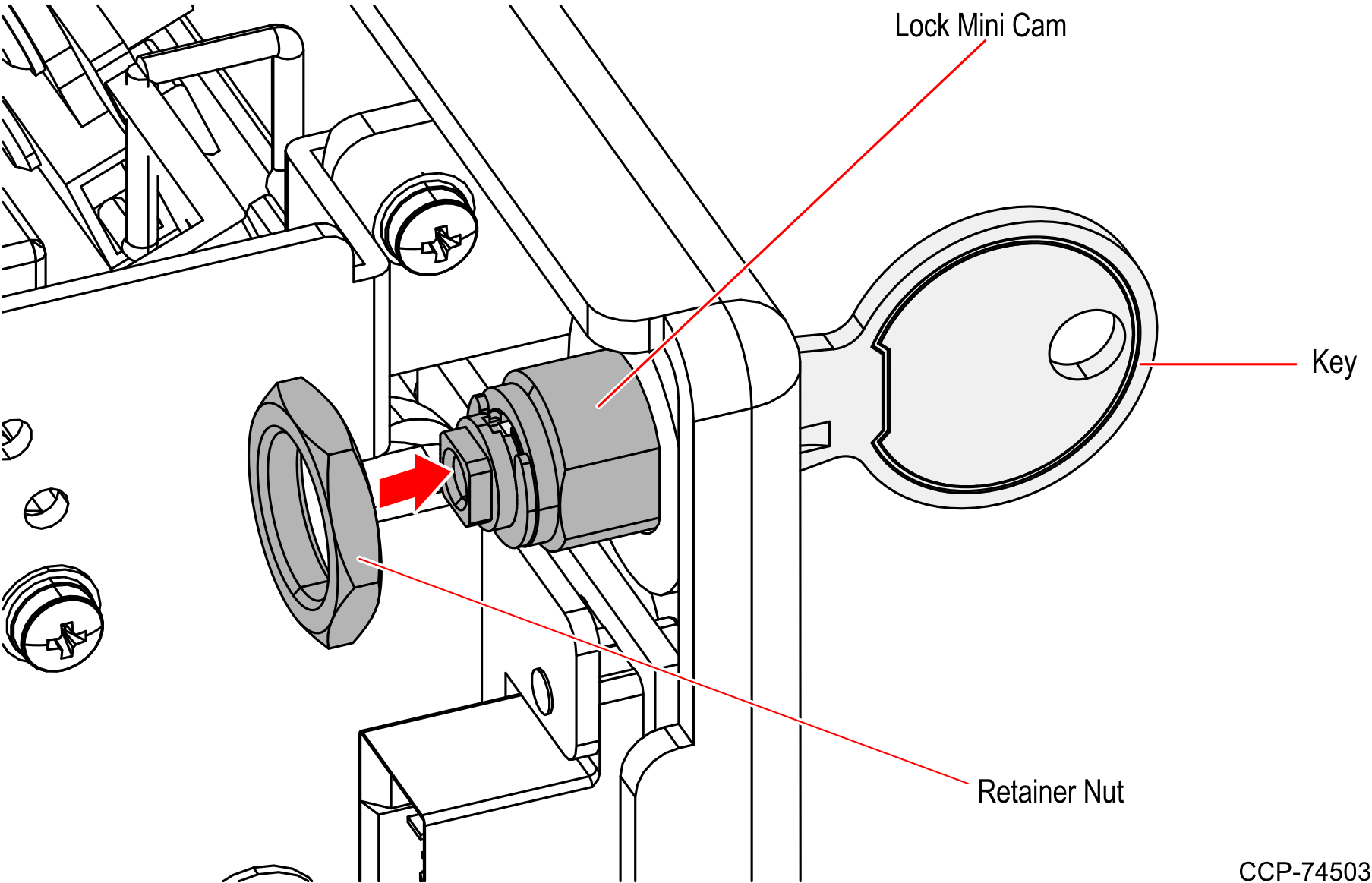

3. Secure the Lock Mini Cam using a retainer nut and then torque the nut to 4 Nm or 35 in/lbs.

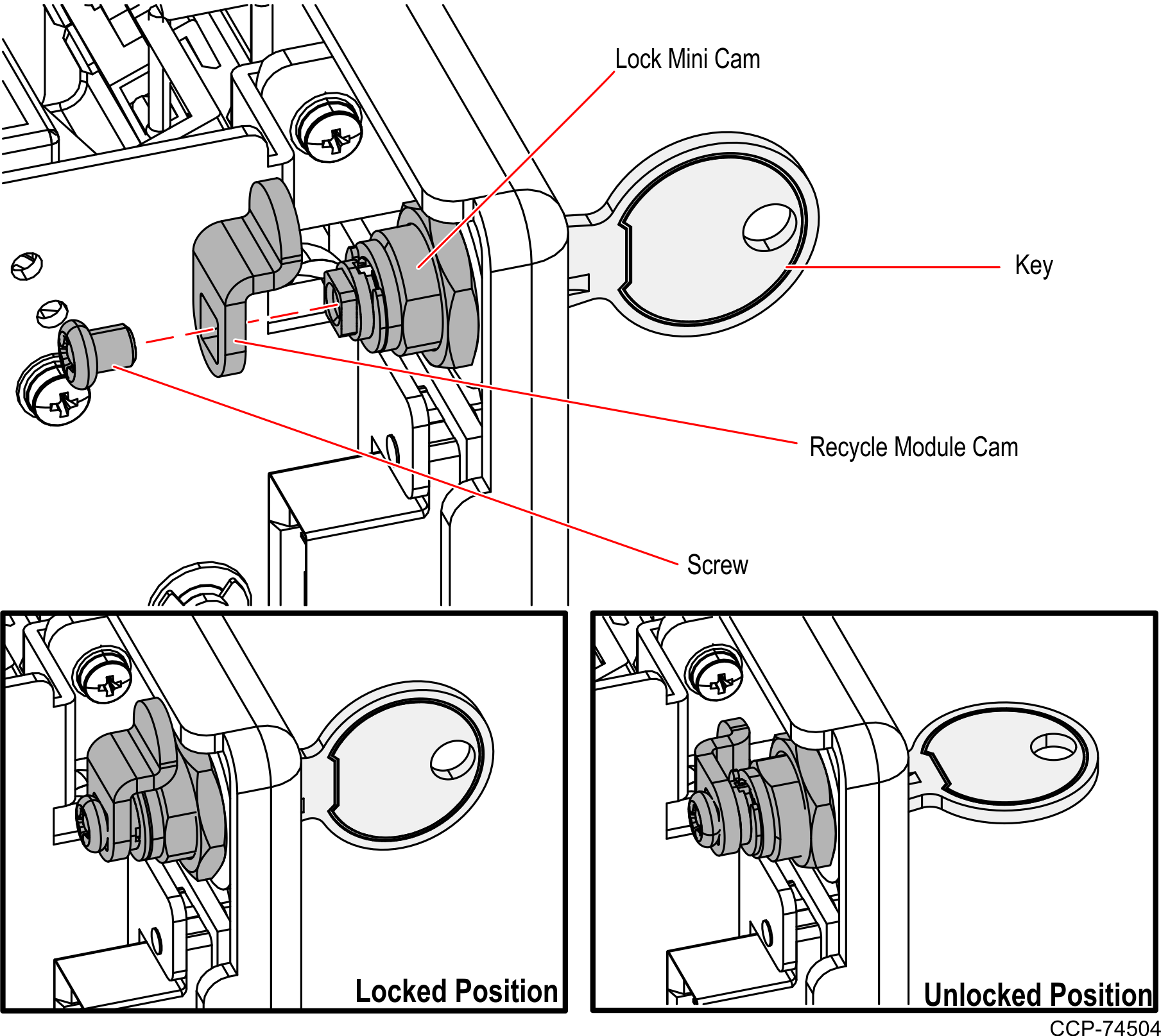

4. Attach the Recycler Module Cam to the Lock Mini Cam in a vertical position using a screw and then torque the screw to 4 Nm or 35 in/lbs.

Note:  Note the orientation of the cam in relation to the key position, as shown in the image below. This would be the locked position of the key when in use.

5.Apply an adhesive (Loctite #242) to the cam screw to secure the cam in place.

To install the Notebox (Cashbox) Security Door, refer to Installing GSR50 Notebox (Cashbox) Security Door.
