Installing Scanner/Scale Demarcation Labels on 7360 Convertible Units

To attach the Scanner/Scale Demarcation Labels on a Convertible SelfServ Checkout unit, follow these steps:

Note

Ensure that the Scanner/Scale Demarcation Labels for NCR Voyix Self-Checkout (7360) Standard Configuration is already applied before proceeding with this procedure. For more information, refer to Installing Scanner/Scale Demarcation Labels on Standard Configuration.

  1. Attach the "Scanner Back" label by doing the following:
    1. Remove the "Scanner Back" label from the label sheet.

    1. Position and attach the "Scanner Back" label starting from the left edge of the Scanner/Scale towards the other side of the Scanner/Scale, as shown in the image below.
      Note

      The NCR Voyix Self-Checkout (7360) Convertible unit is in assisted mode with the Scanner/Scale positioned at the back of the core.

  2. Attach the "Convertible LH Side" label by doing the following:
    1. Remove the "Convertible LH Side" label from the label sheet.

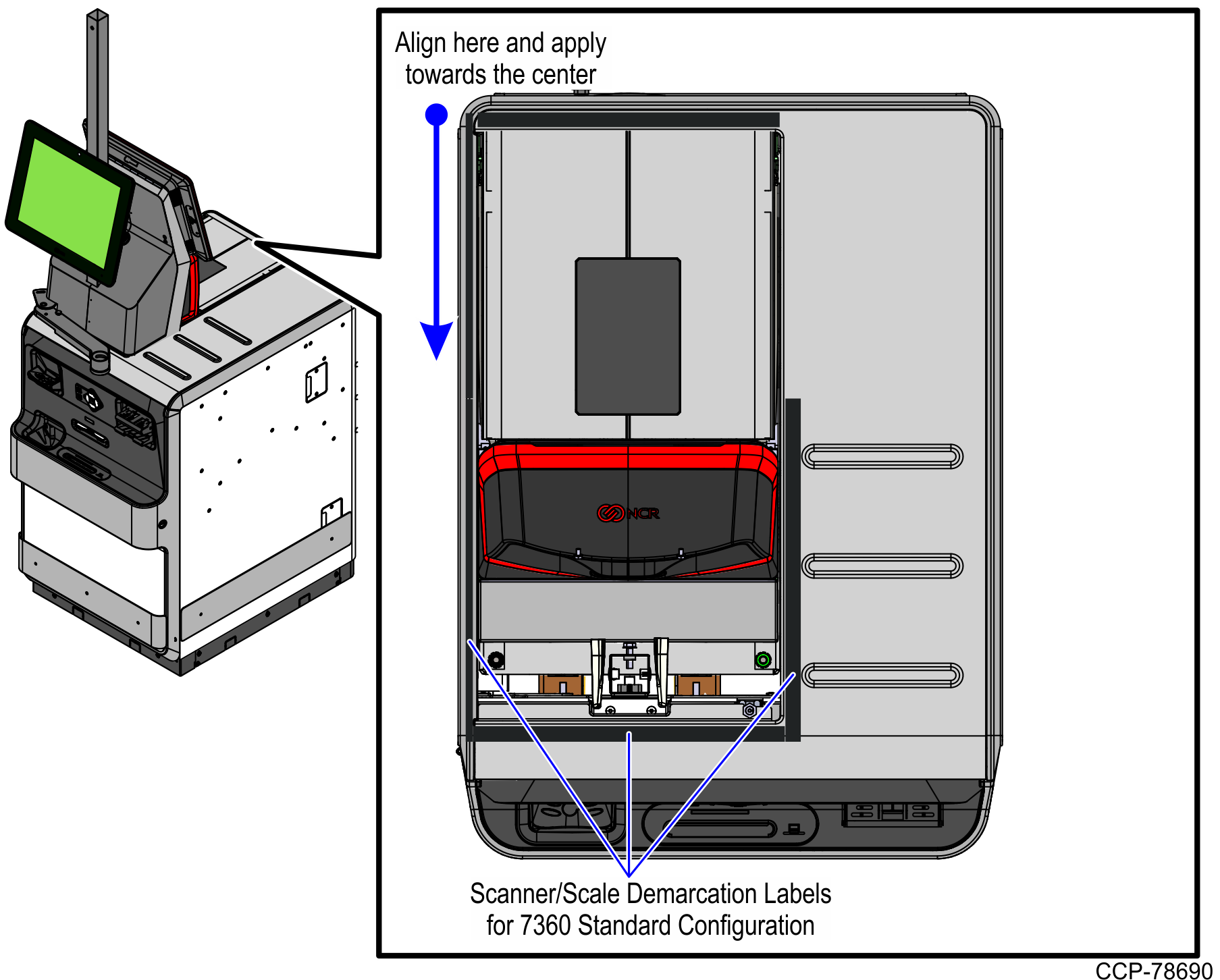

    1. Position and attach the "Convertible LH Side" label starting from the left outer side of the "Scanner Back" label towards the center, as shown in the image below.

  3. Attach the "Convertible RH Side" label by doing the following:
    1. Remove the "Convertible RH Side" label from the label sheet.

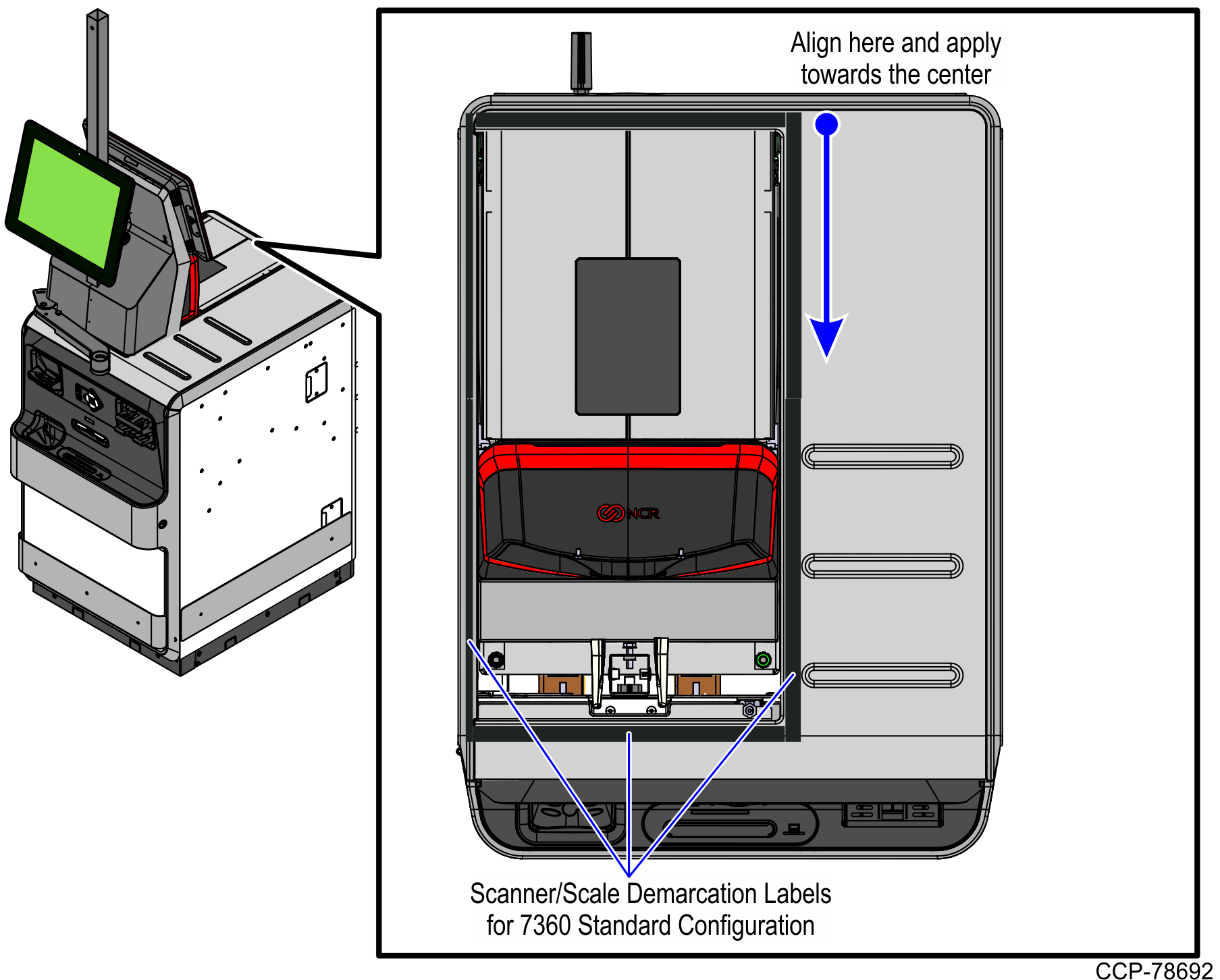

    1. Position and attach the "Convertible RH Side" label starting from the right outer side of the "Scanner Back" label towards the center, as shown in the image below.
