Installing Tri–Light/Lane Light Assembly

To install the Tri–Light/Lane Light assembly, follow these steps:

1.Install the Tri–Light/Lane Light pole. For more information, refer to Installing Tri–Light/Lane Light Pole (Optional).

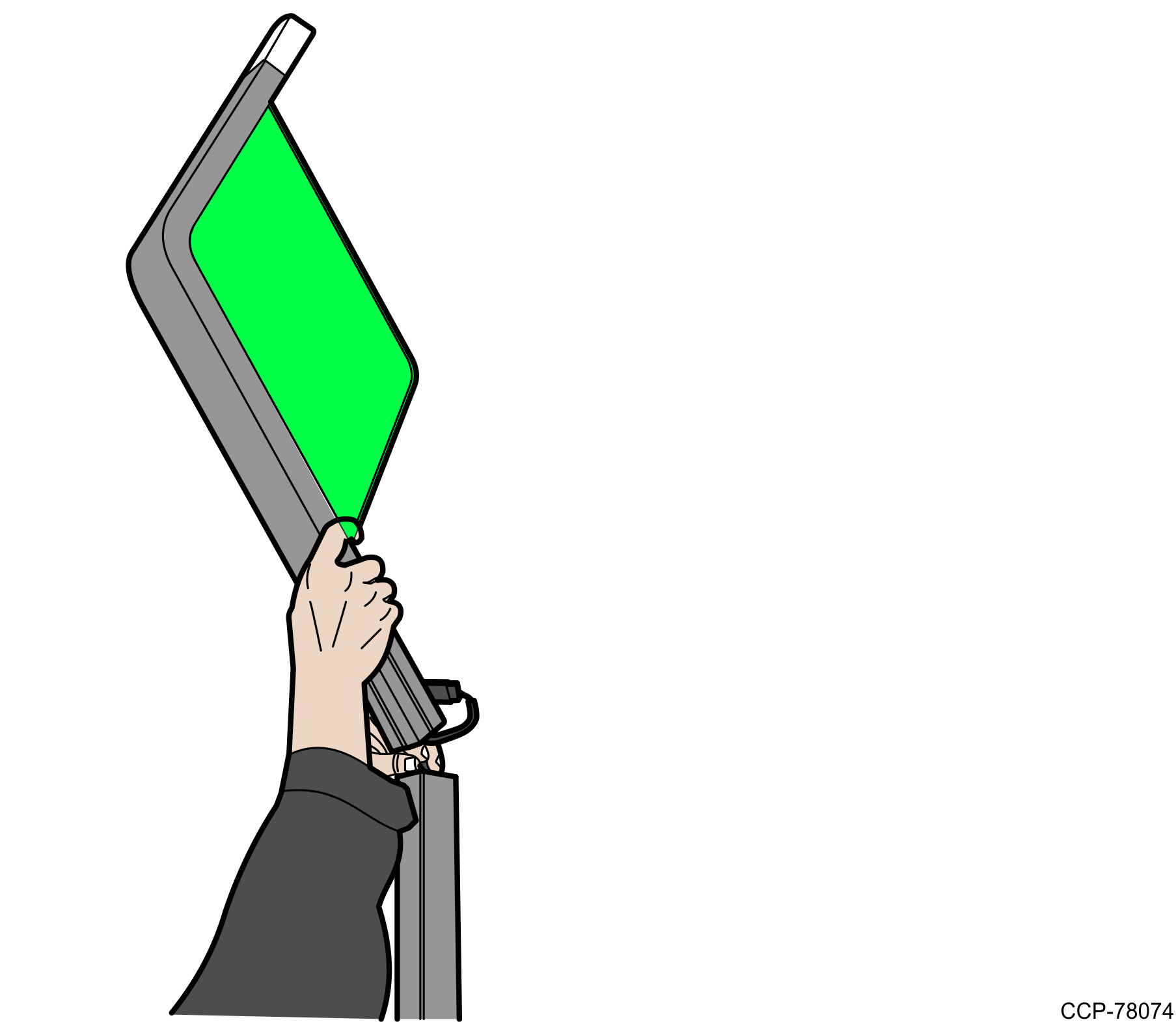

2.Connect the Tri–Light/Lane Light assembly cable with the cable extender in the pole.

3.Orient the Trilight/Lane Light assembly so that the Lane Light faces the front of the unit.

4.Insert the Tri–Light/Lane Light assembly into the Tri–Light/Lane Light pole. Ensure that the pole holes are aligned.

5.Secure the Tri–Light/Lane Light assembly to the pole with a screw.

6.Run the ADD utility to ensure device is updated with the latest firmware.
