Removing Loader Cassette Module and Notebox (Cashbox) Module

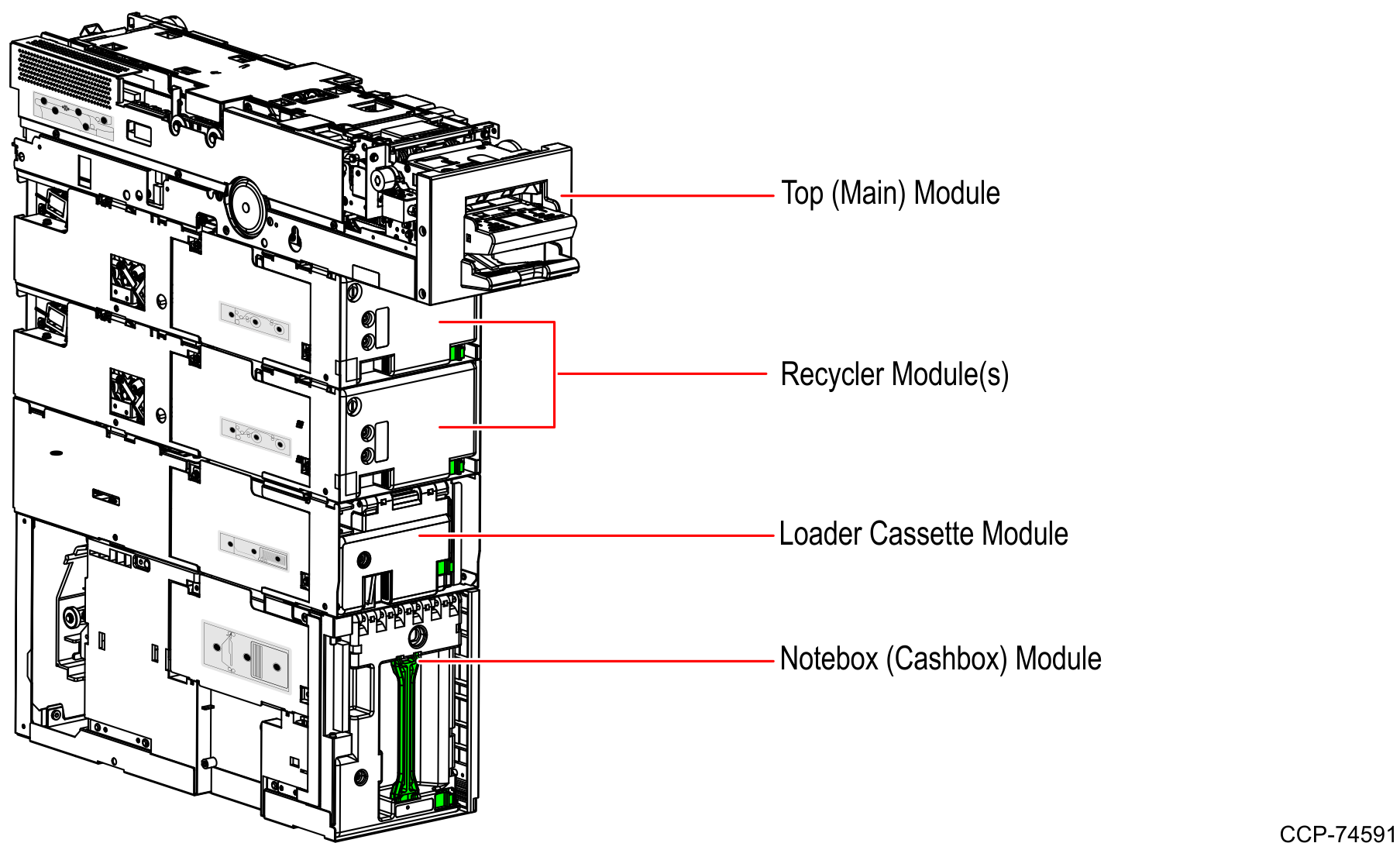

The GSR50 Note Recycler has the following modules:

1. Top (Main) Module
2. Recycler Module (1x or 2x)
3. Loader Cassette Module
4. Notebox (Cashbox) Module

To remove the Loader Cassette Module and Notebox (Cashbox) Module assembly, follow these steps:

1. Access the GSR50 Note Recycler. For more information, refer to Accessing the GSR50 Note Recycler.

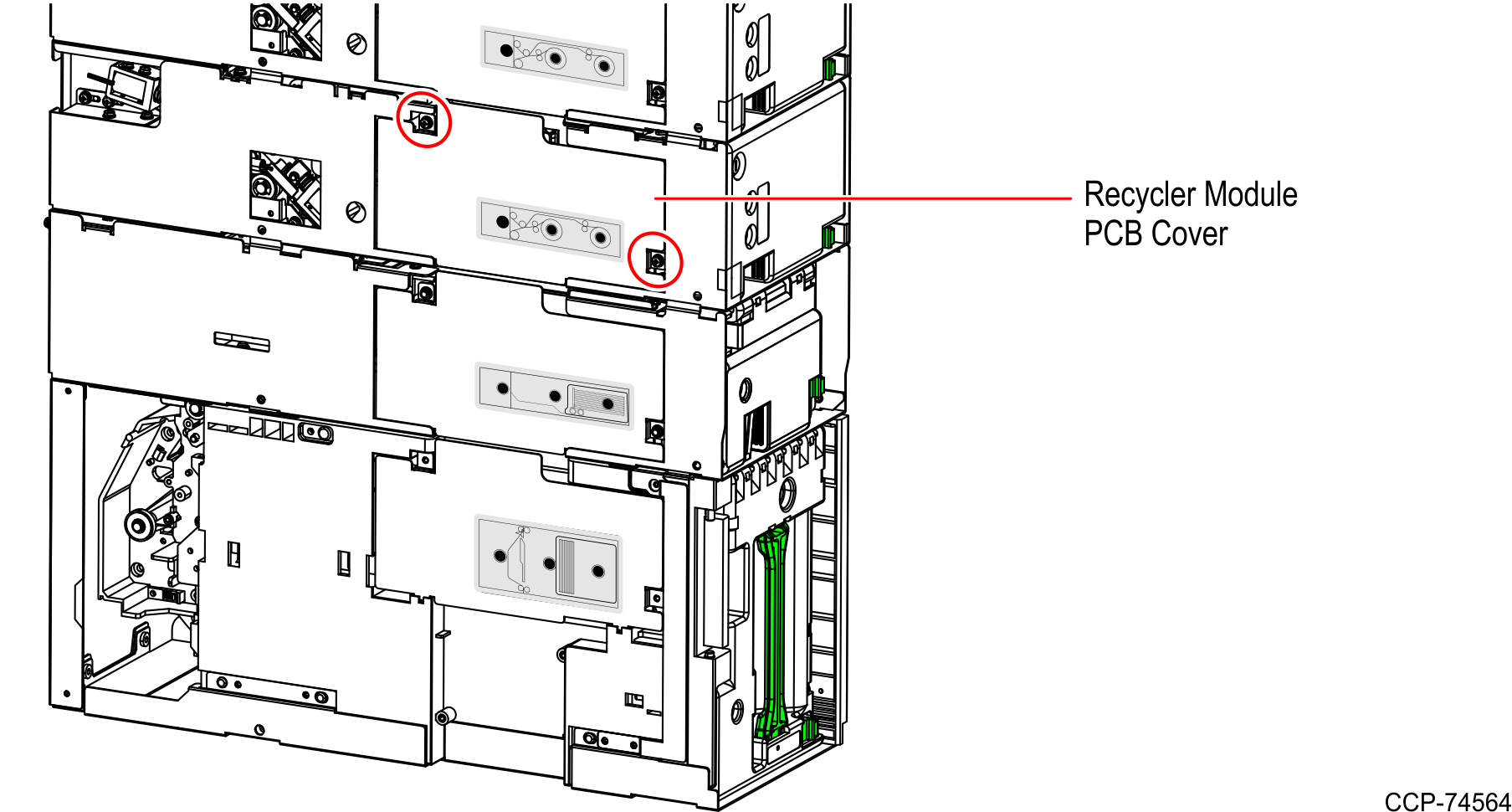

2. Remove the screws from the Lowest Recycler frame. The PCB Cover can then be removed.

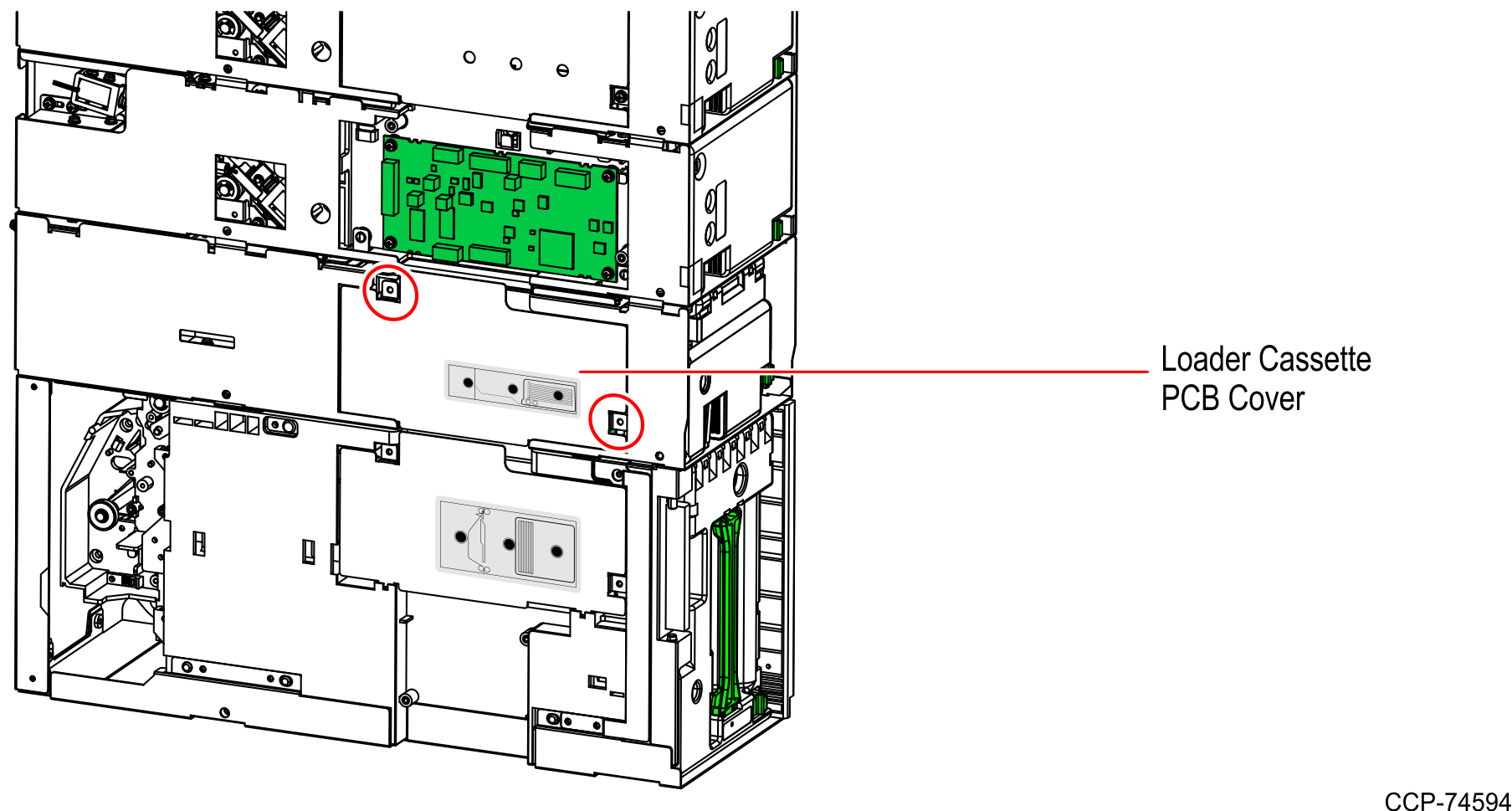

3. Remove the screws from the Loader Cassette frame. The PCB Cover can then be removed.

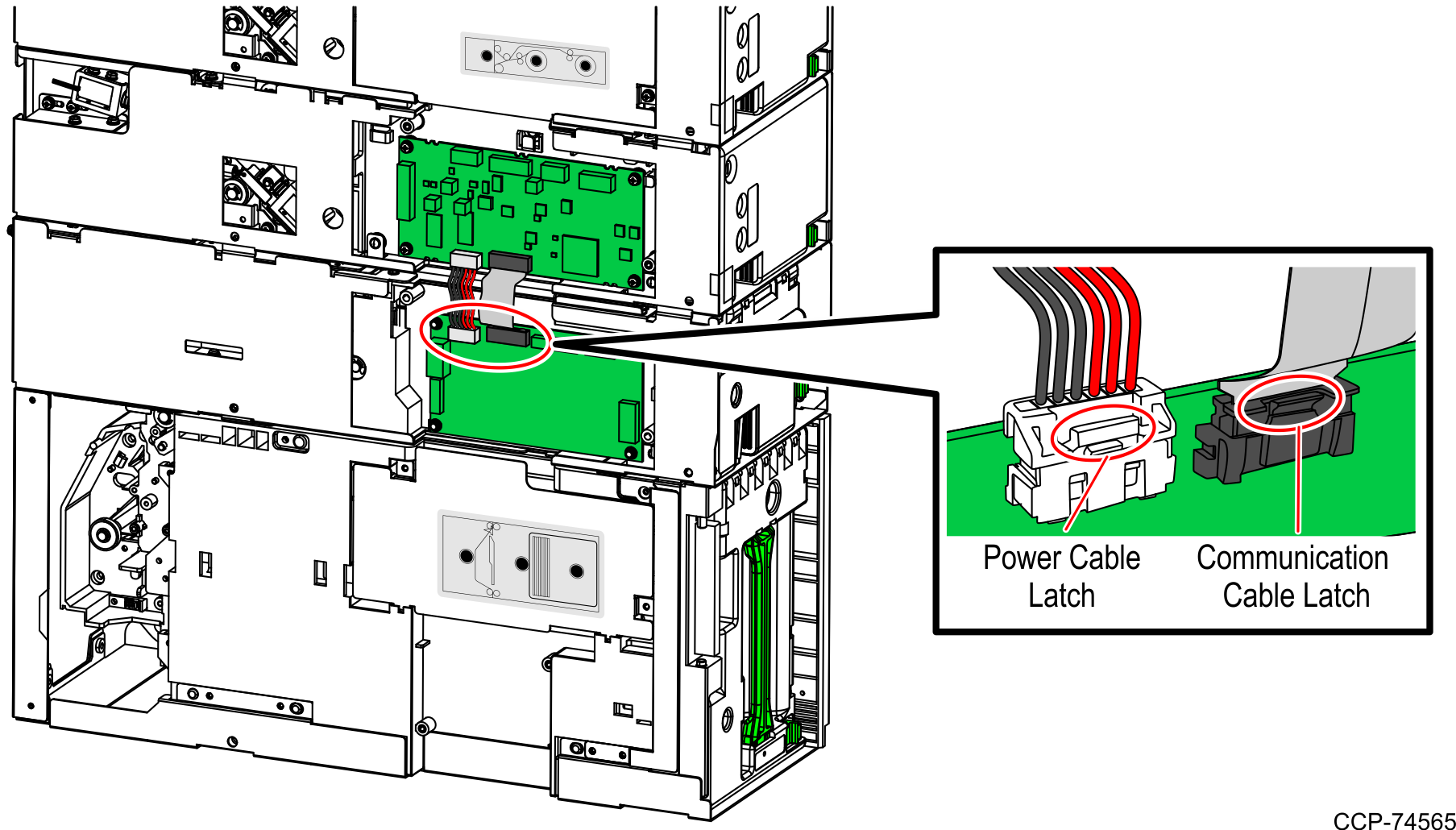

4. Press the latches to remove the communication and power cables, as shown in the image below.

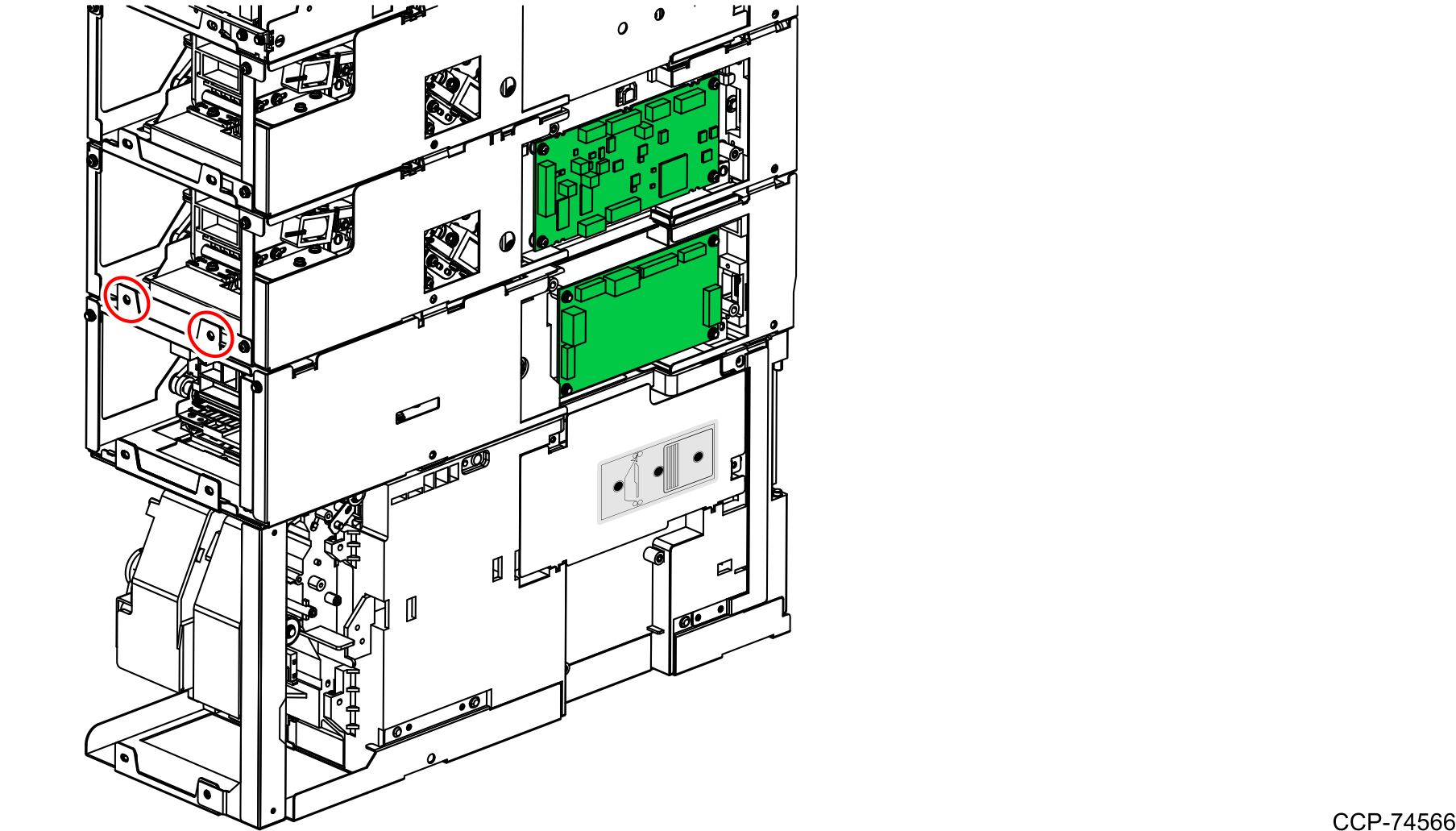

5. From the back of the GSR50 Note Recycler, The Loader Cassette frame and Recyler frame is secured together by two screws. Remove these two screws.



6. Remove the Loader Cassette and Notebox (Cashbox) modules out of the Note Recycler by doing the following:

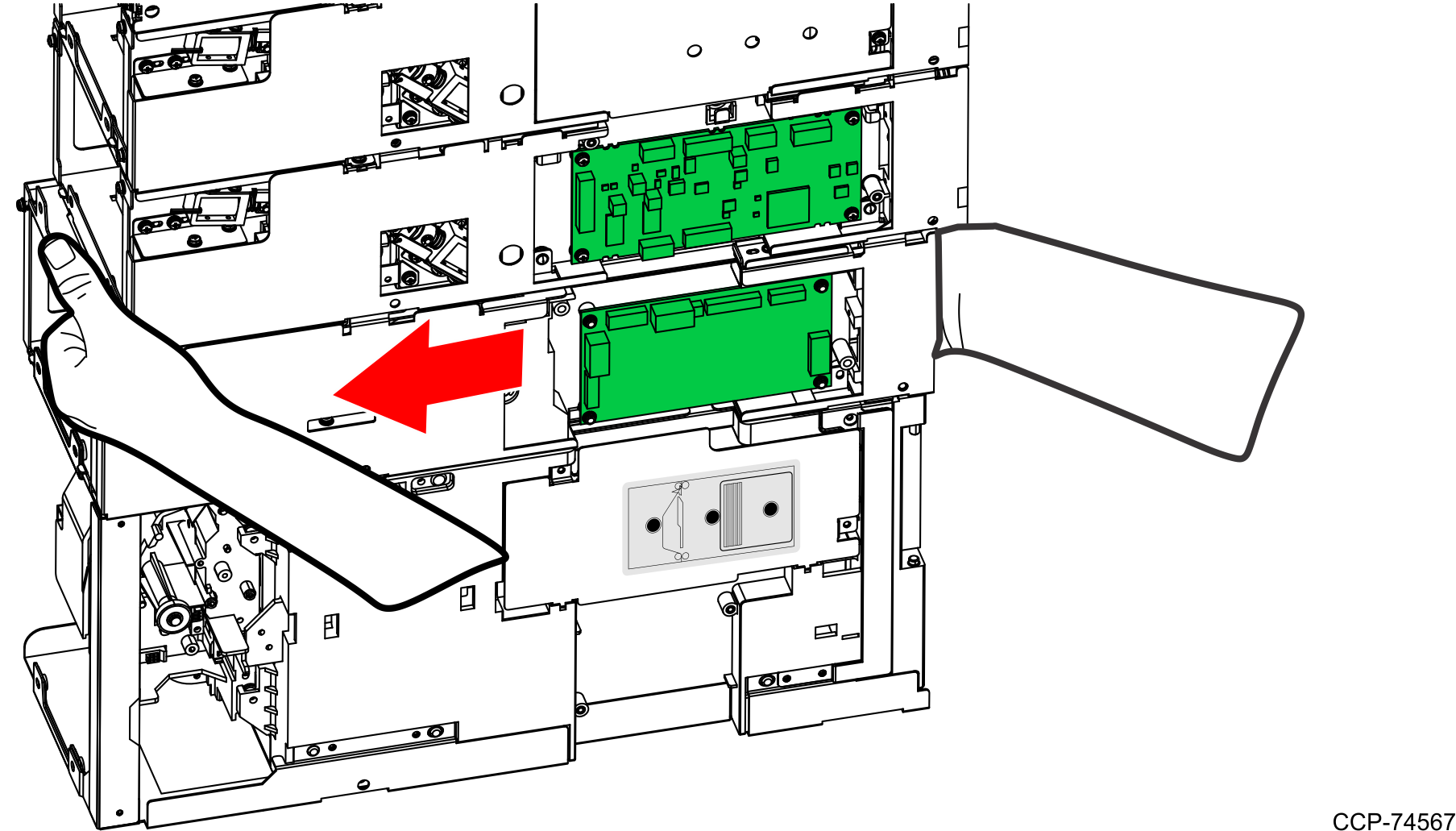

   1. Disengage the mounting hooks from the bottom of the Recycler frame by using both hands to slide the Loader Cassette and the Notebox (Cashbox) modules to the back of the Note Recycler.



   2. Pull the Loader Cassette and Notebox (Cashbox) modules out of the recycler frame.
      Caution

      Ensure that the Loader Cassette frame is held by both hands to avoid dropping it.

7. Set aside all removed components (Loader Cassette and Notebox (Cashbox) modules, screws, cables, and PCB cover plates) for future re-installation.

To install the new GSR50 Recycler Module, refer to Installing GSR50 Recycler Module.
