Installation Procedures

To install the 1-Bag Scale Tray Fence, follow these steps:

1. If replacing the Scale Tray Fence, remove the existing Scale Tray Fence. For more information, refer to Removing the 1-Bag Scale Tray Fence.
2. Assemble the new Scale Tray Fence by doing the following:

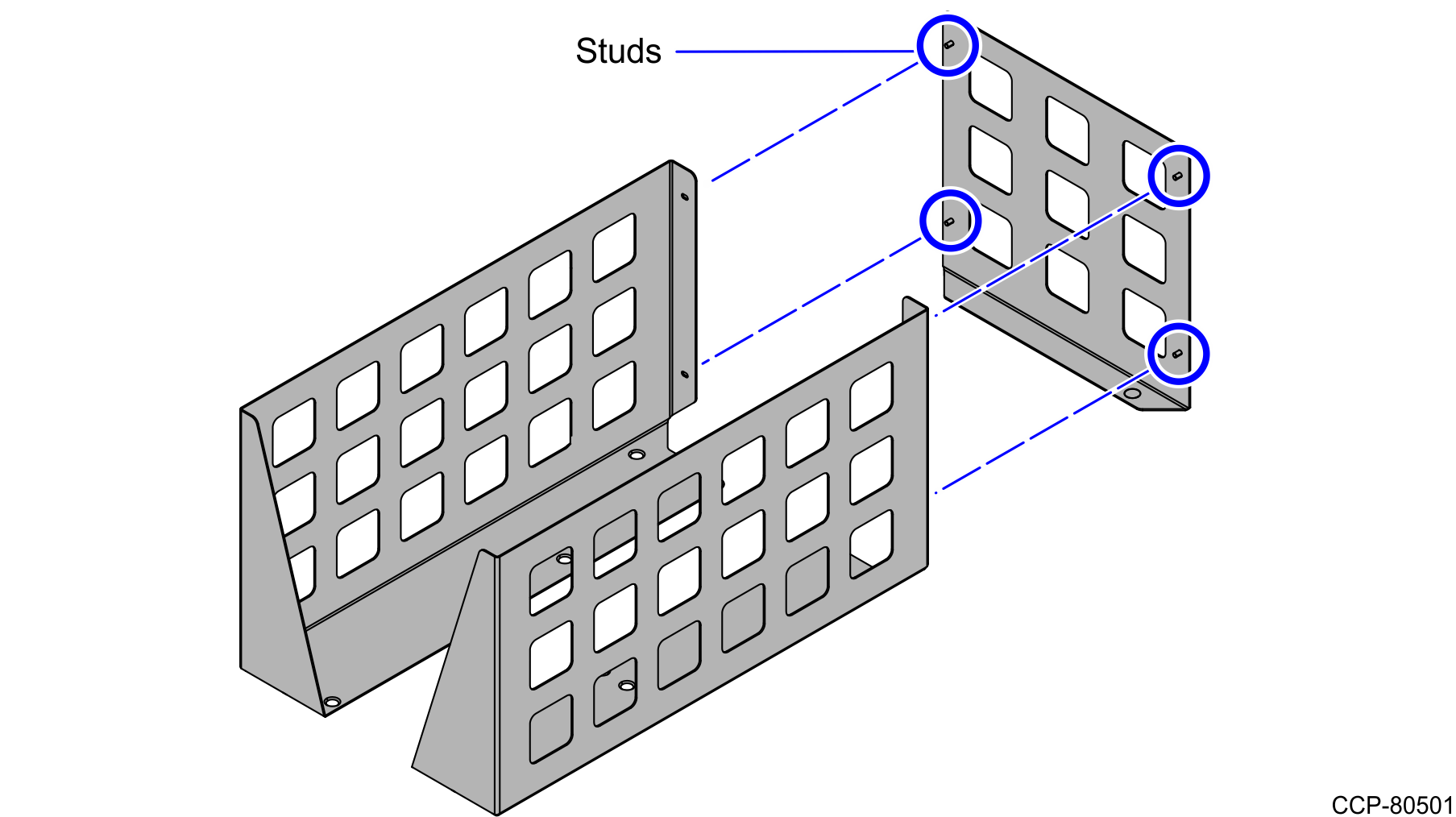

   1. Insert the studs on the Rear Fence to the corresponding holes on the two (2) Side Fences.



   2. Loosely install four (4) Acorn Nuts on the studs.

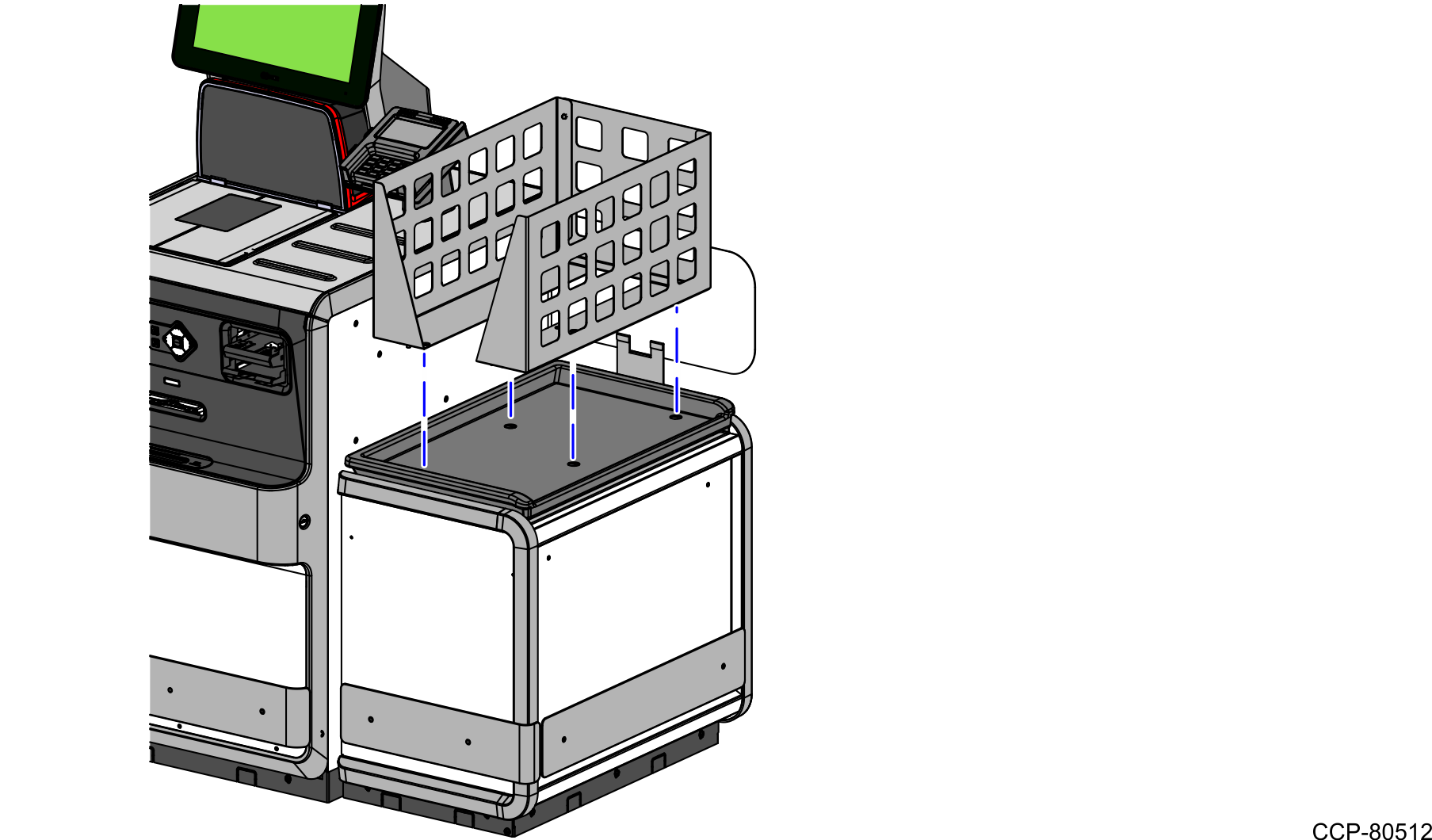

3. Align the screw slots of the Scale Tray Fence to the corresponding mounting holes on the Scale Tray. The image below shows a unit with Left-hand (LH) orientation for illustration only.
   Note

   Mounting holes are the same for Left-hand (LH) orientation or Right-hand (RH) orientation.



4. Tighten the four (4) Acorn Nuts to secure the Side Fences to the Rear Fence.
