Installing the 21.5" Terminal Display (Landscape - Hybrid/Card Only)

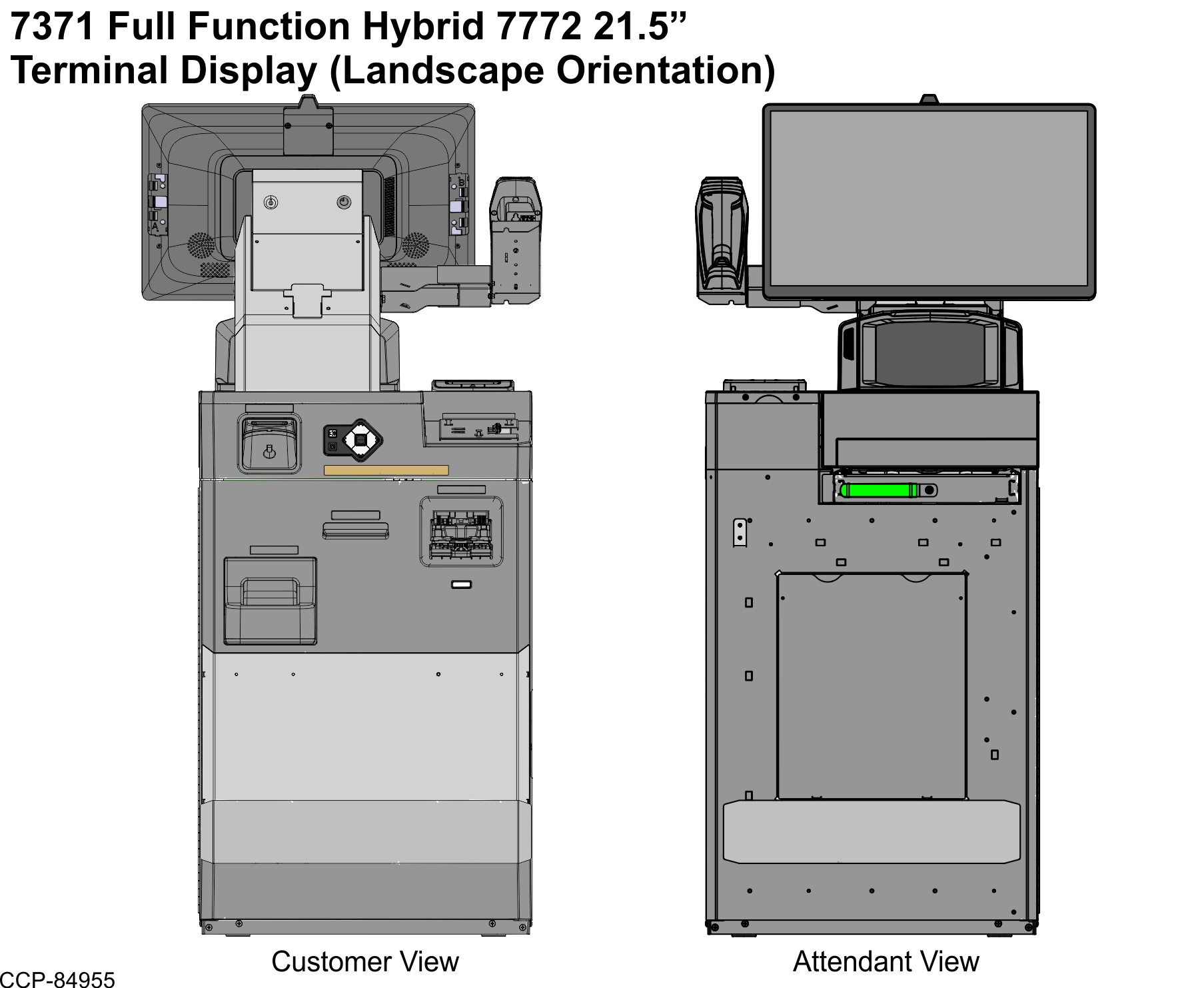

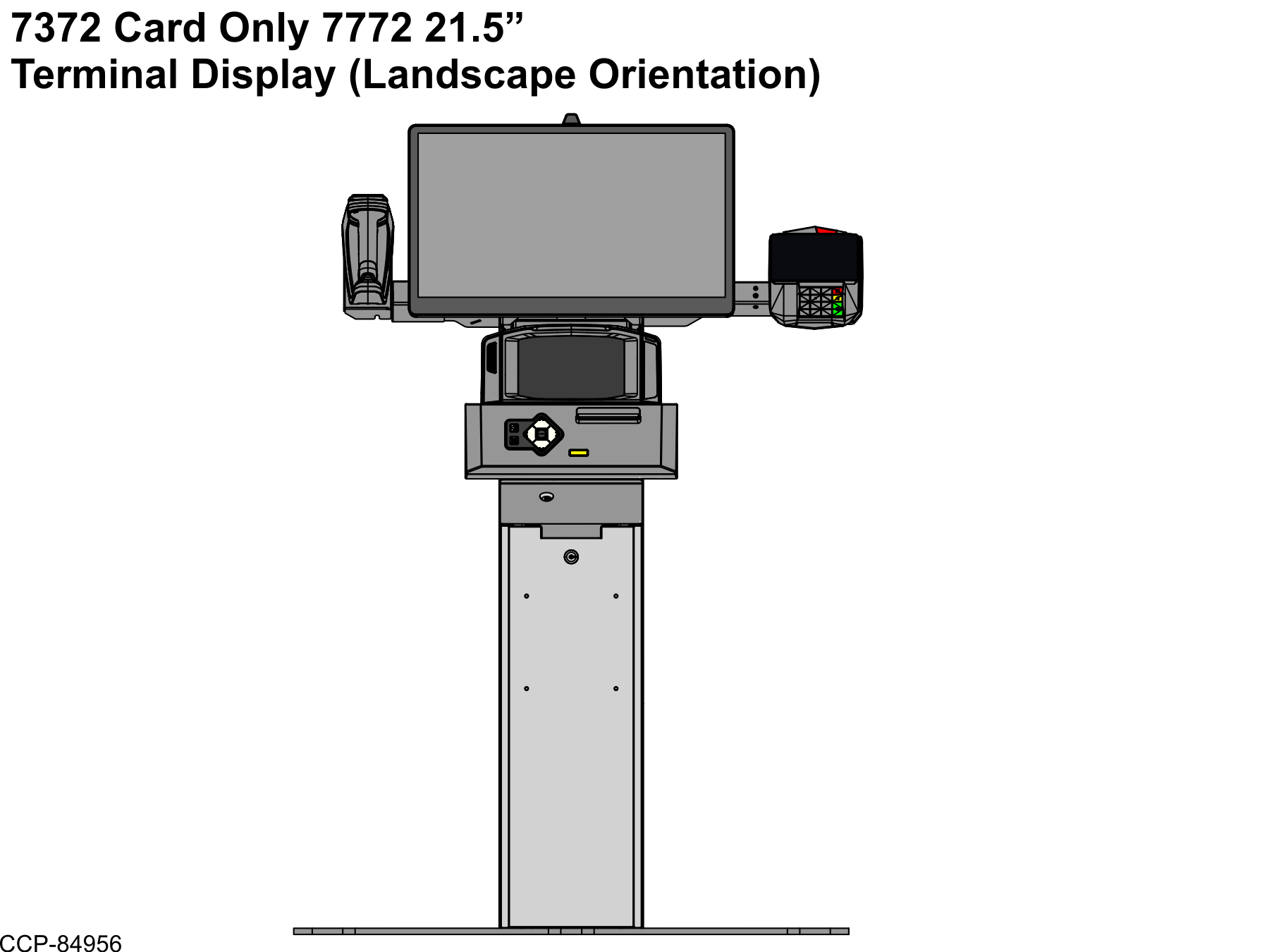

To install the Terminal Display in landscape orientation on the 7371 NCR Voyix SCO Full Function Hybrid or 7372 NCR Voyix SCO Card Only unit, follow these steps:

1. Install the Common Display Bracket. For more information, refer to Installing the Common Display Bracket for Landscape Orientation (Hybrid/Card Only).
2. Install the Rear Cosmetic Cover. For more information, refer to Installing the Rear Cosmetic Cover.
3. Place the Terminal Display on the Top Plate with the back facing up.
4. Connect the cables to the corresponding Terminal Display ports.

   Pre-routed cables	CX7 Terminal Display Port
   Display cable	USB Type-C Port A (Power/Data) Tighten the screw on the USB connector.
   Network cable	LAN

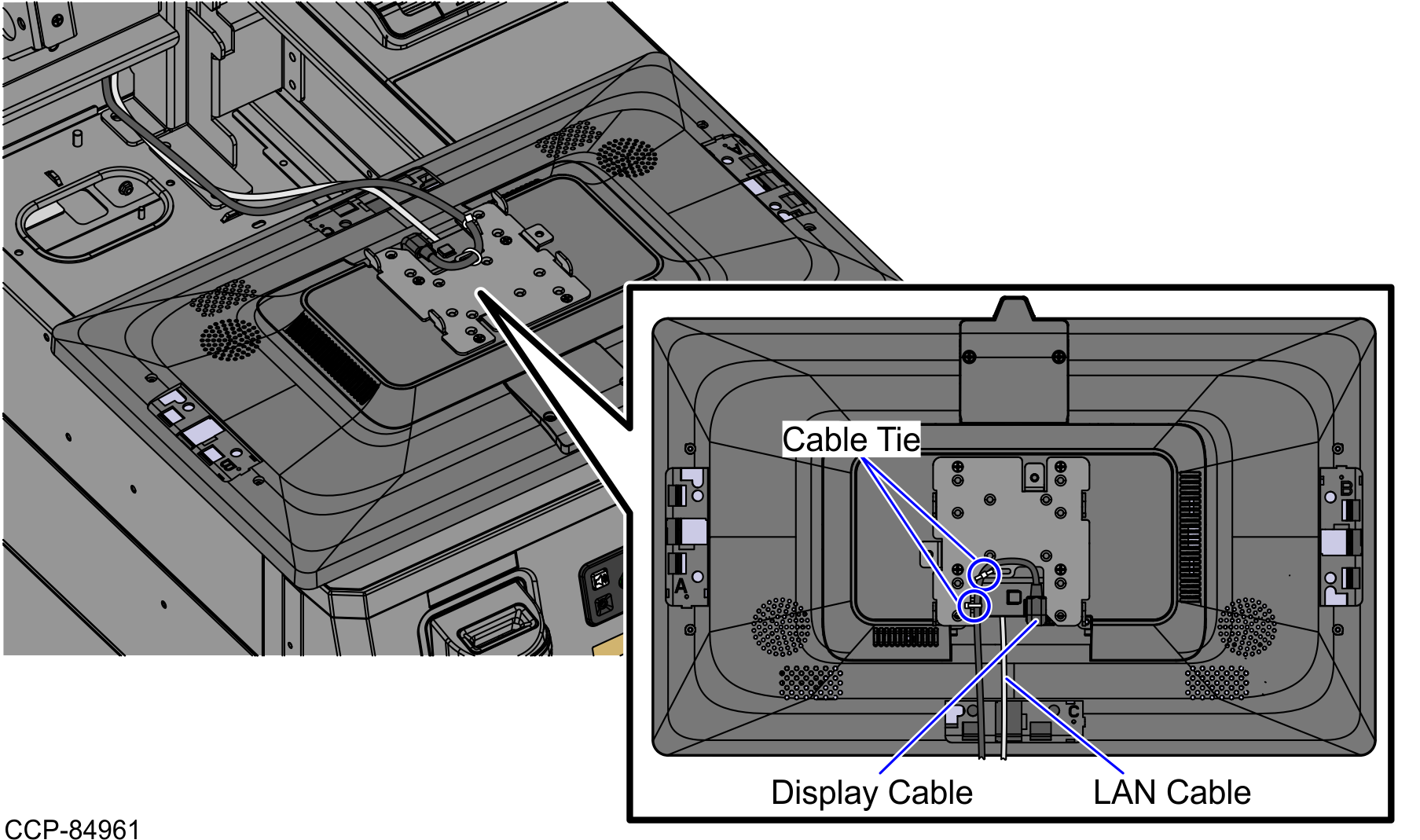

5. Route and secure the Display cable on the Terminal Display, as shown in the image below.

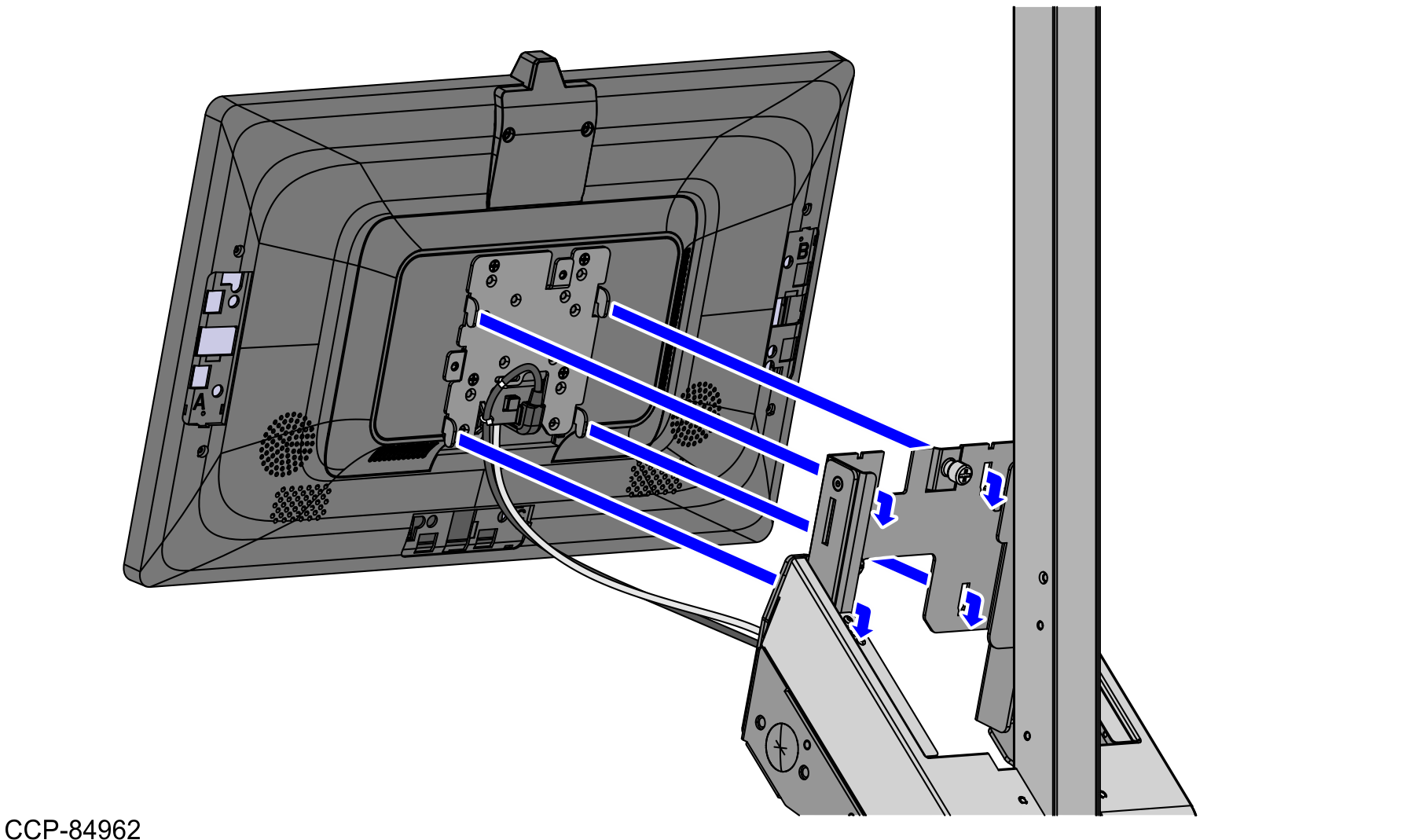

6. Slide the Terminal Display down the Display Support Bracket by inserting the hooks on the Common Display Bracket into the corresponding holes, as shown in the image below.

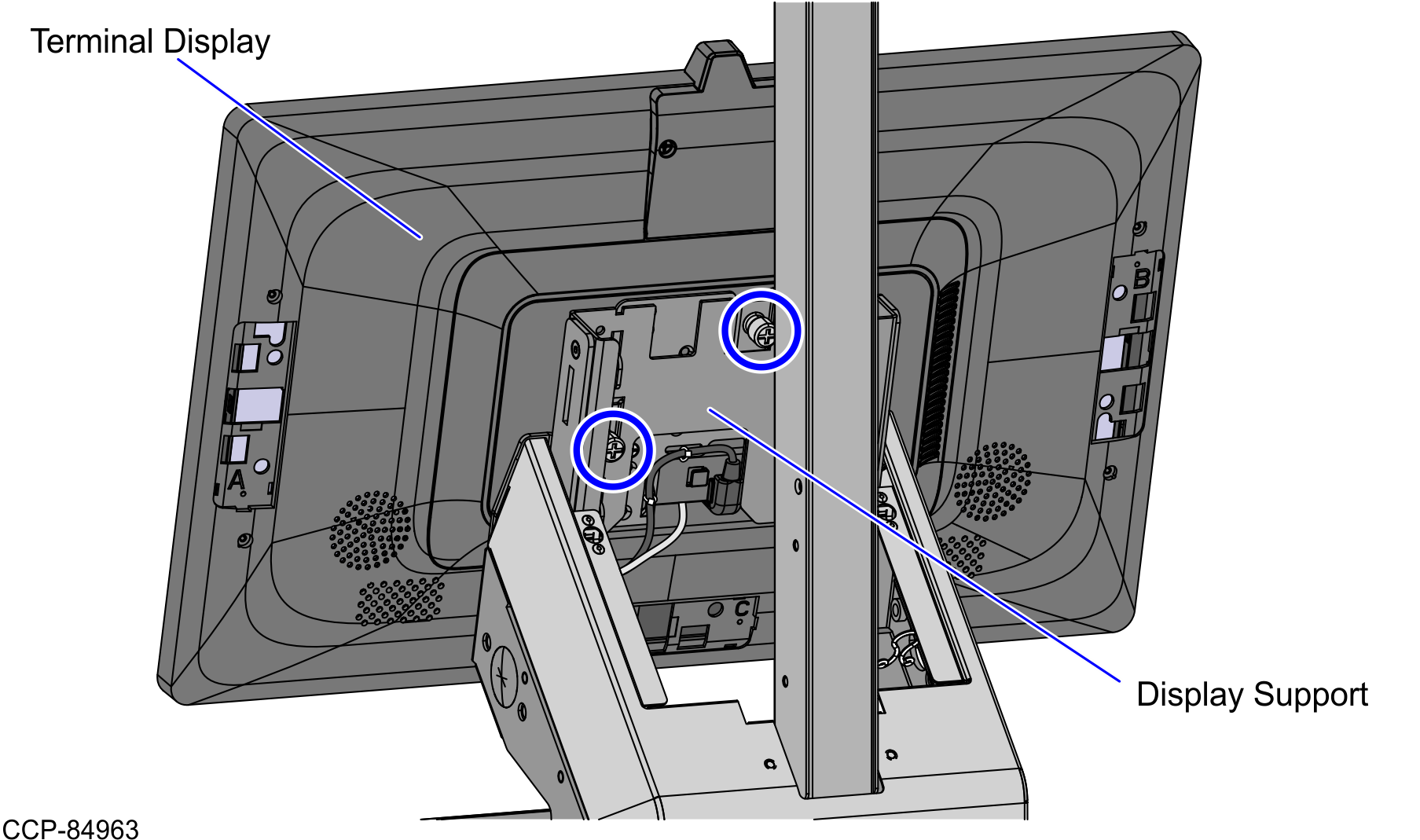

7. Secure the Terminal Display using two (2) thumb screws, as shown in the image below.



8. Close the Tower Cabinet. For more information, refer to Closing the Tower Cabinet.
