Routing the uNav and Coupon Sensor cables (Left-hand (LH) orientation)

To route the uNav cable in a Left-hand (LH) orientation unit, follow these steps:

  1. Install the Sidecar Coupon Bin. For more information, refer to Installing the Sidecar Coupon Bin (Left-hand (LH) orientation).
  2. If necessary, remove the Coupon Bin.
    Note

    Images below are for reference only.

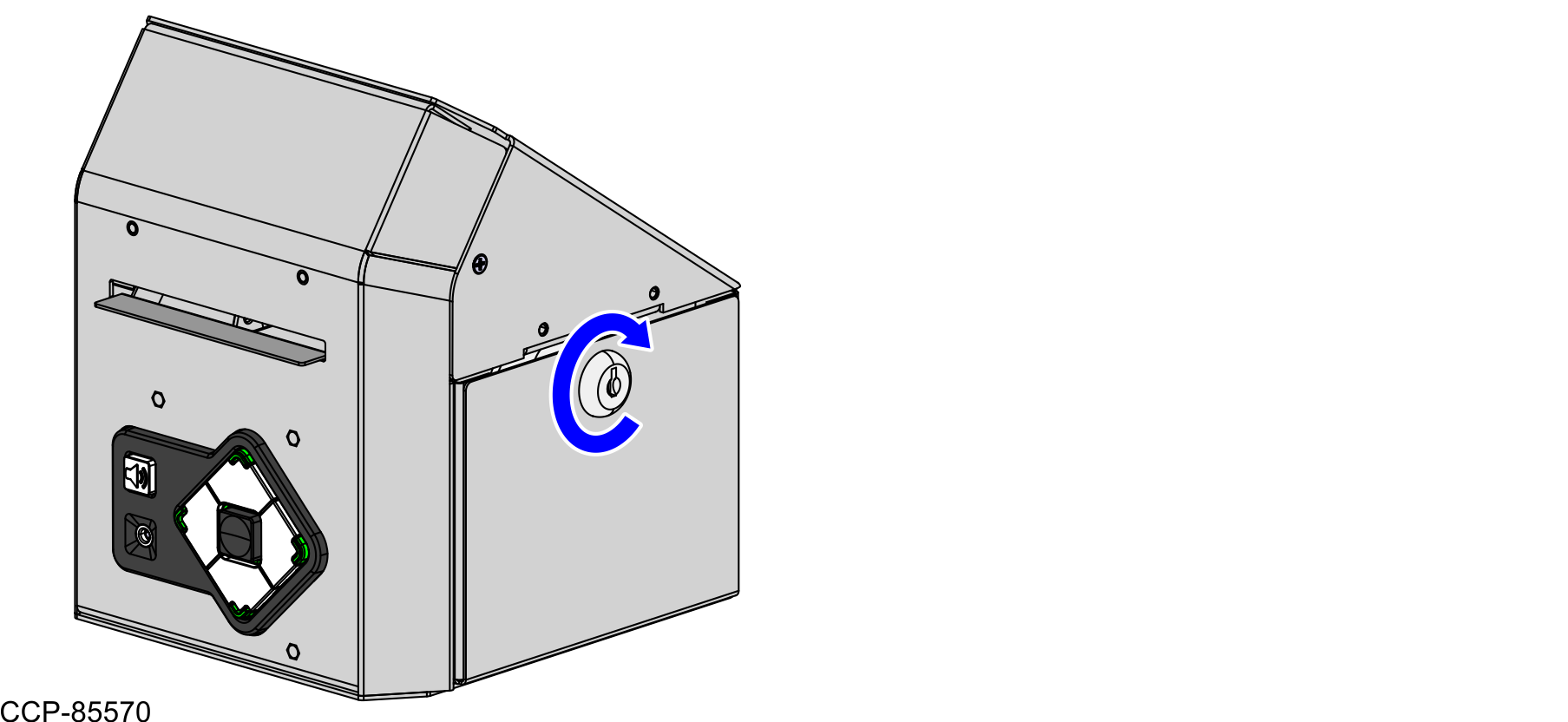

    1. Open the Sidecar Coupon Bin by turning the key clockwise.

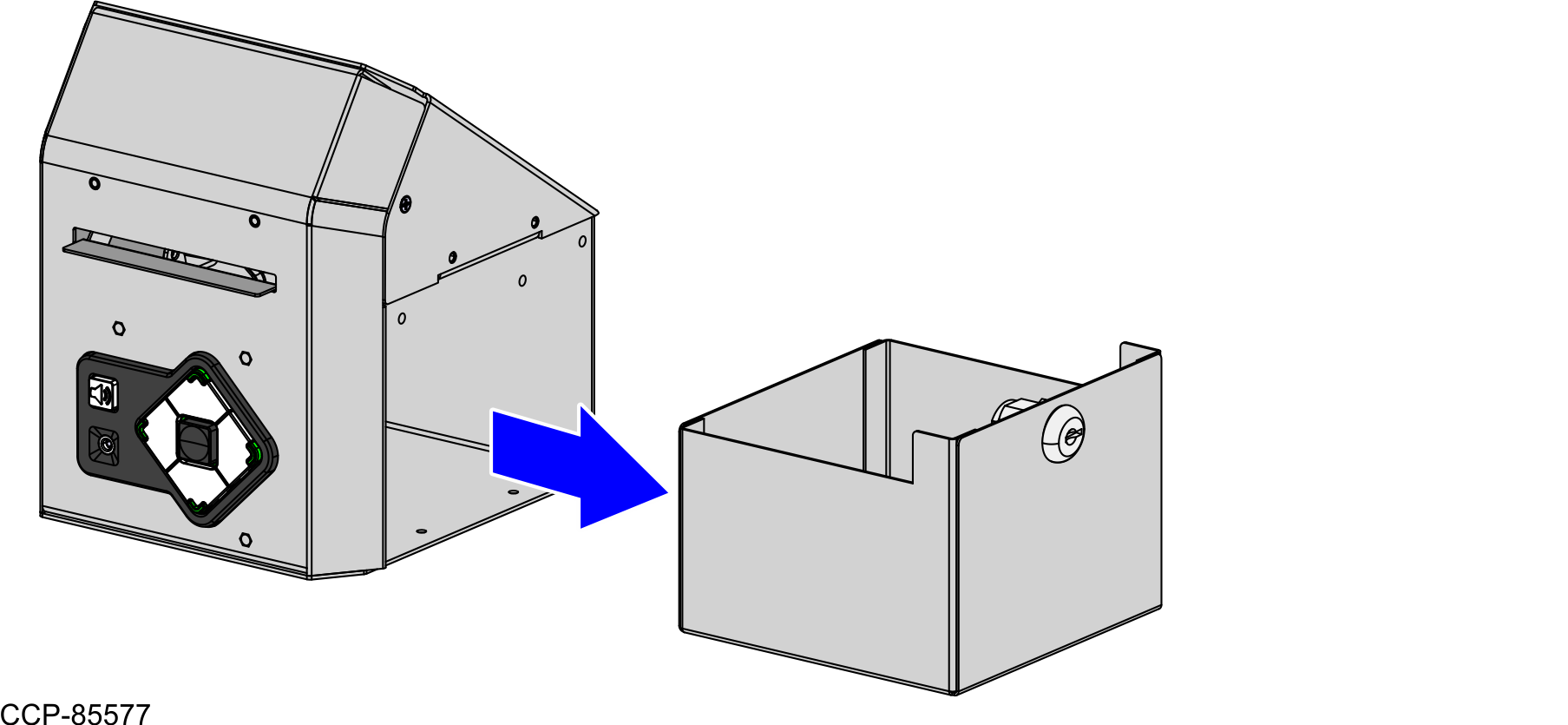

    2. Pull out the Coupon Bin from the Sidecar.

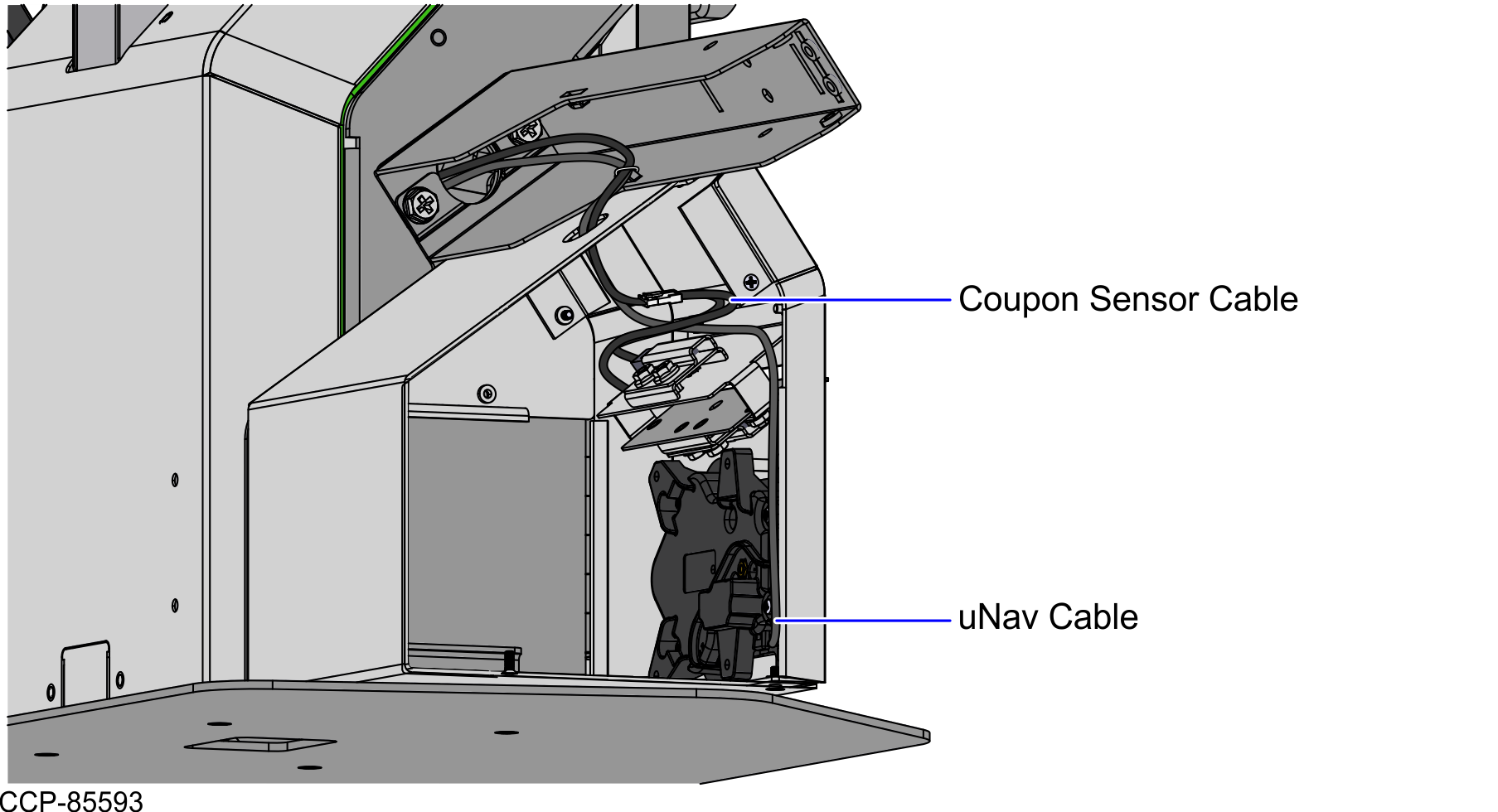

  1. Pass the uNav and Coupon Sensor cables through the access hole on top of the Sidecar Coupon Bin into the Tower Cabinet through the Tower Arm, as shown in the image below.
    Note

    Ensure that there is enough cable slack to avoid cables from being stretched when servicing the uNav assembly.

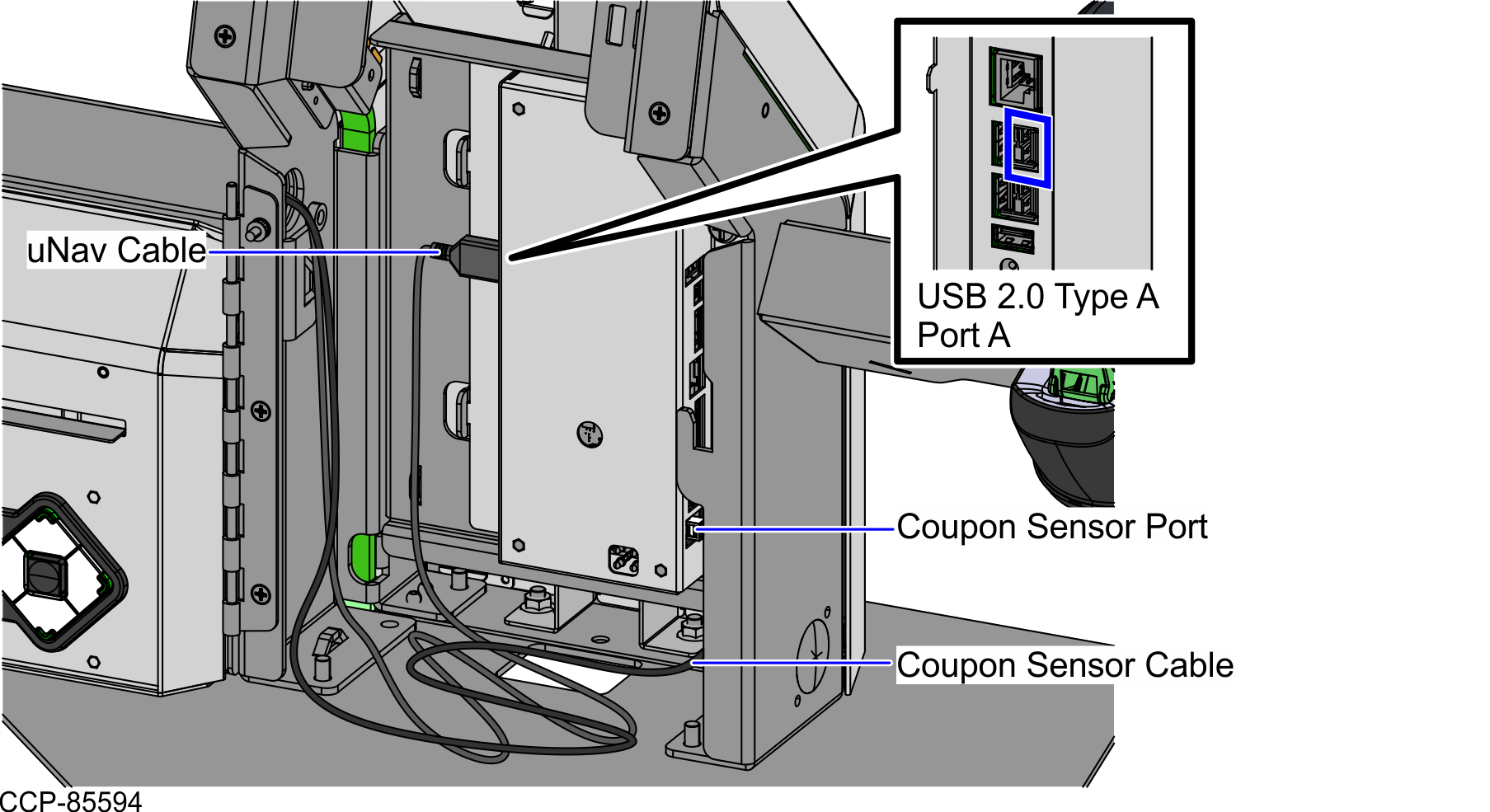

  2. Route and connect the uNav and Coupon Sensor cables to the KIO Board, as indicated in the table below.
    CableKIO Board Port
    uNav USB 2.0 Type A Port A
    Coupon Sensor Coupon Sensor Port

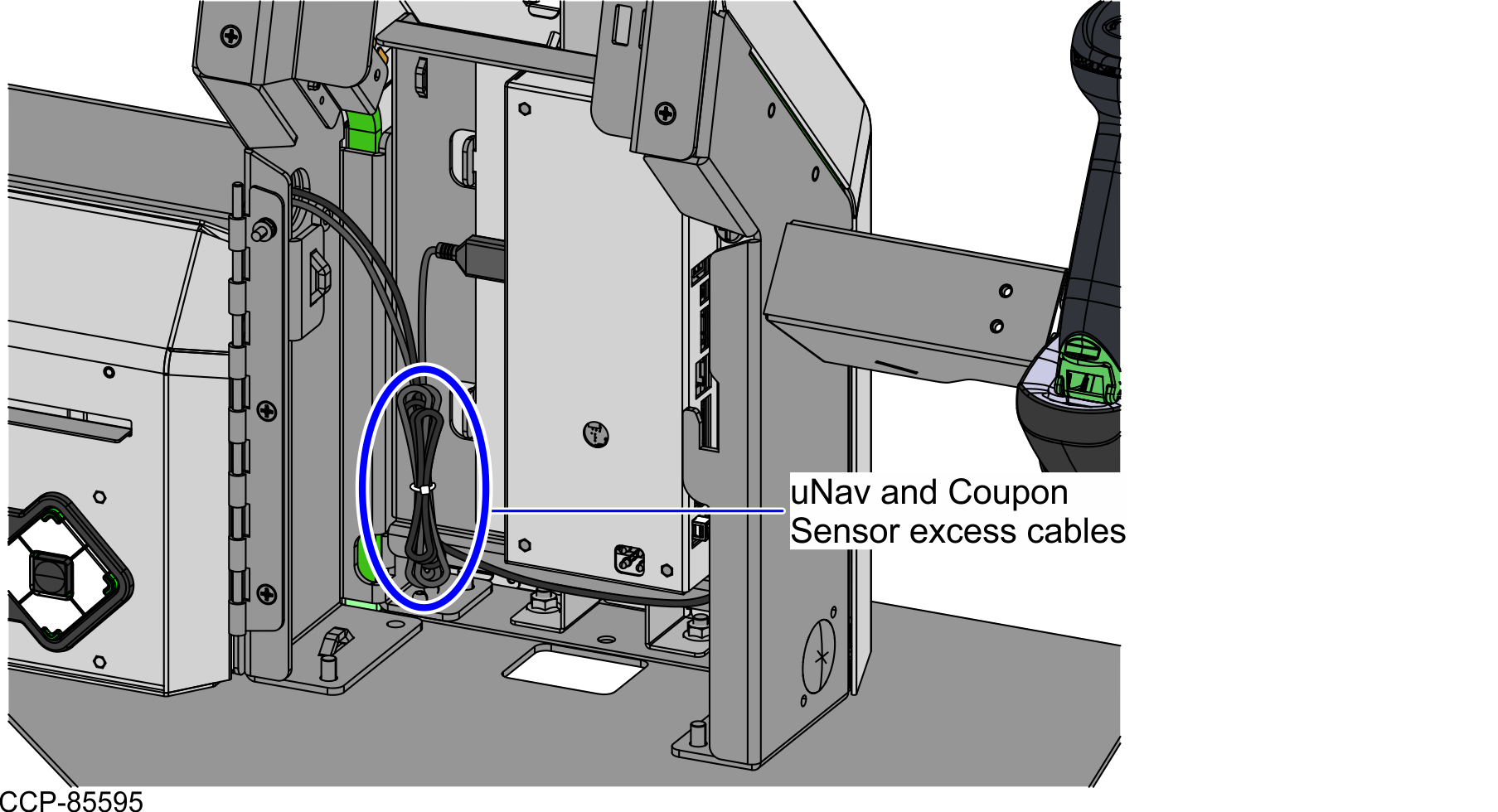

  3. Bundle and secure the excess cables on the left side of the Tower Cabinet using a cable tie, as shown in the image below.
