Installing Panasonic JT-R600 E-Money Terminal

To install the Panasonic JT-R600 E-Money Terminal, follow these steps:

1. Route the cables. For more information, refer to Routing E-Money Terminal Cables.

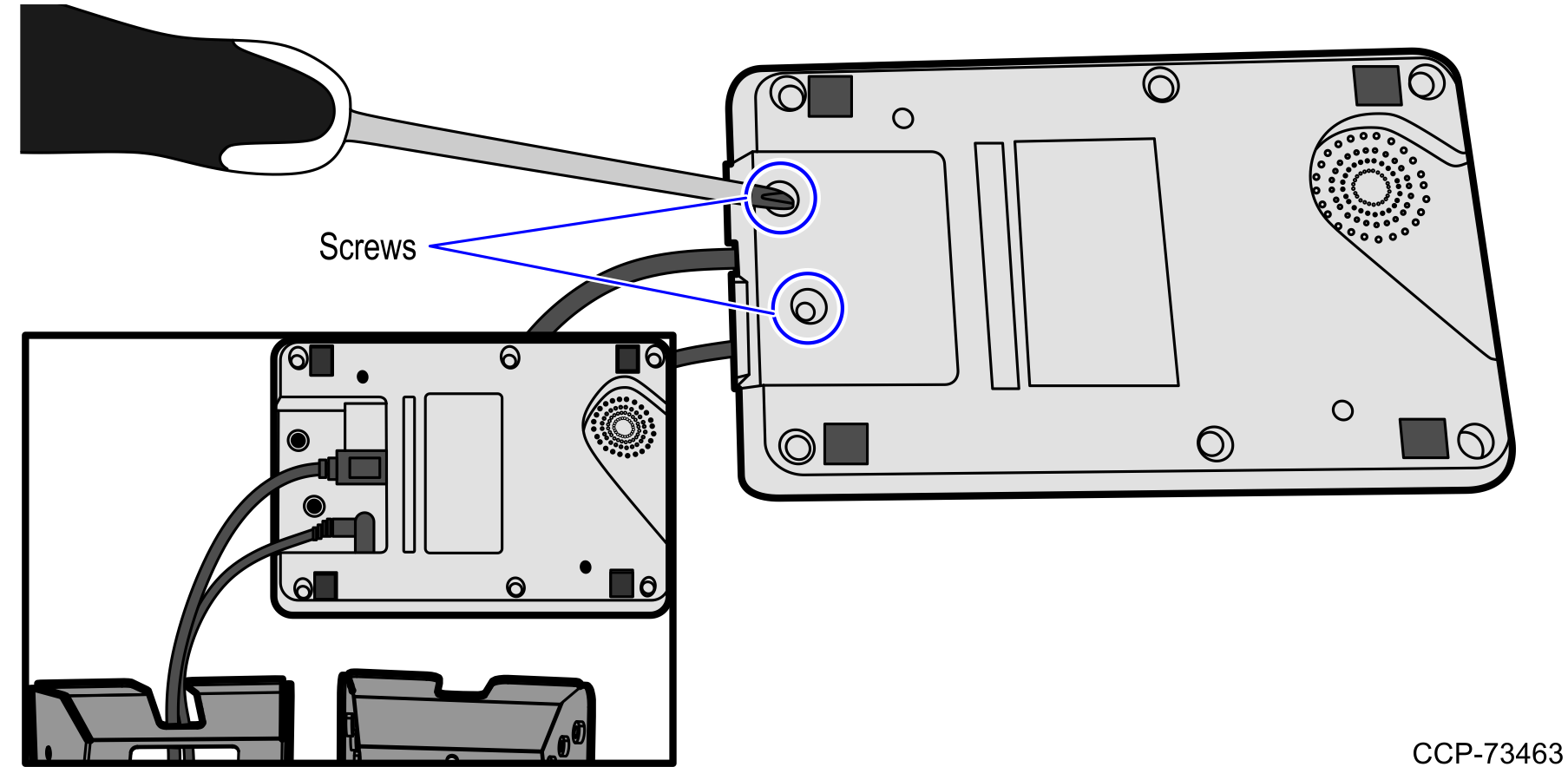

2. Open the terminal cover of the device by removing two (2) screws and connect the power and data cables to the corresponding ports.

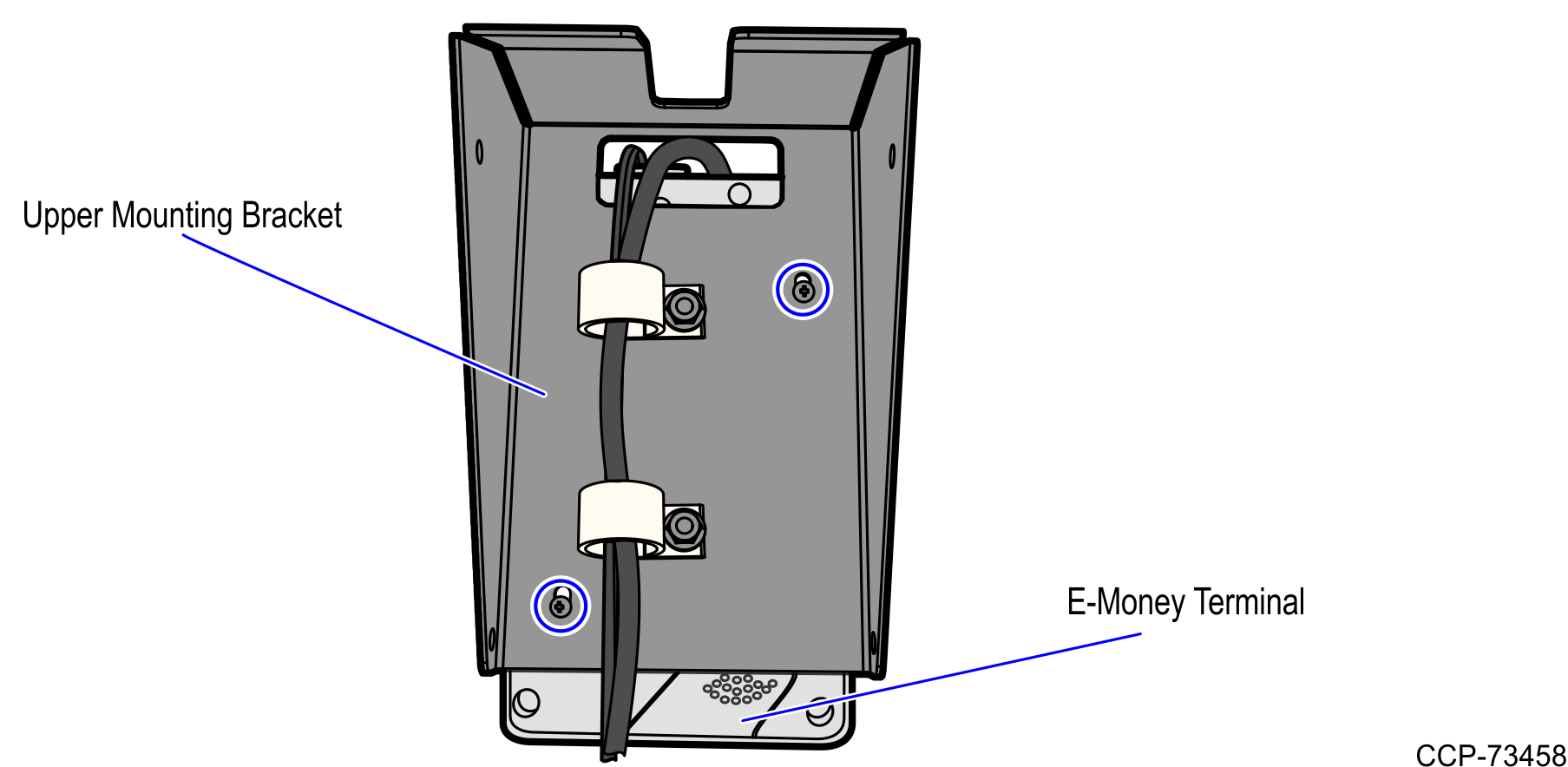

3. Close the terminal cover and secure the E-Money Terminal to the upper mounting bracket using two (2) screws, as shown in the image below.



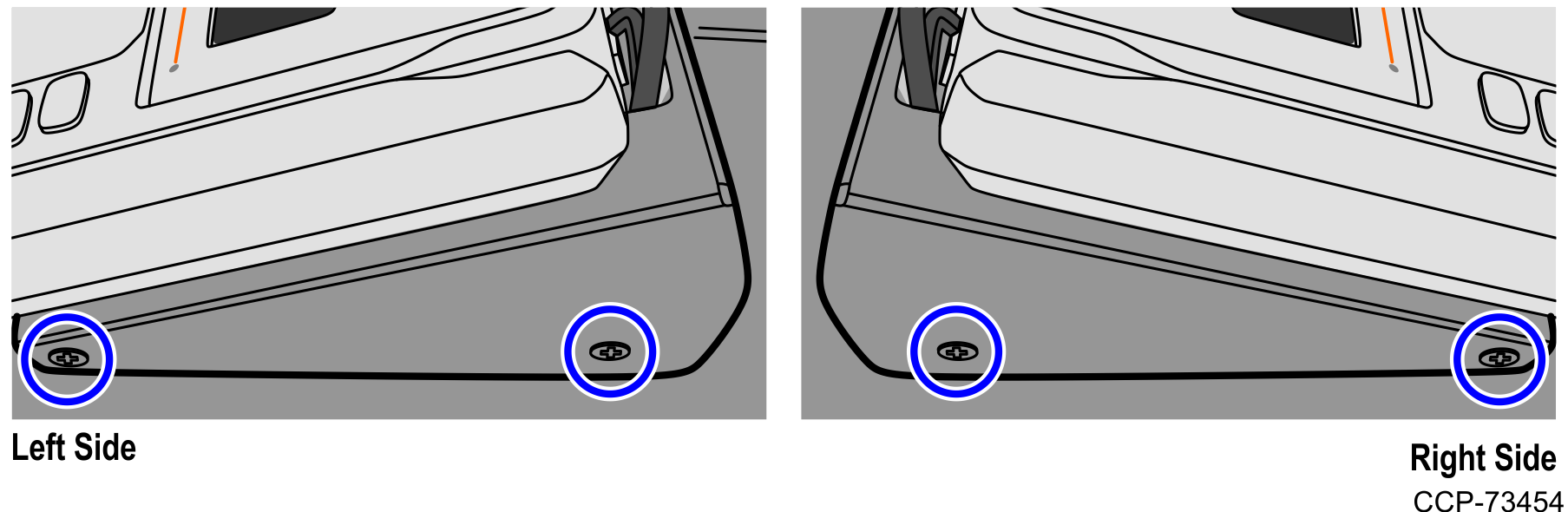

4. Secure the upper mount to the lower mounting bracket using four (4) screws.



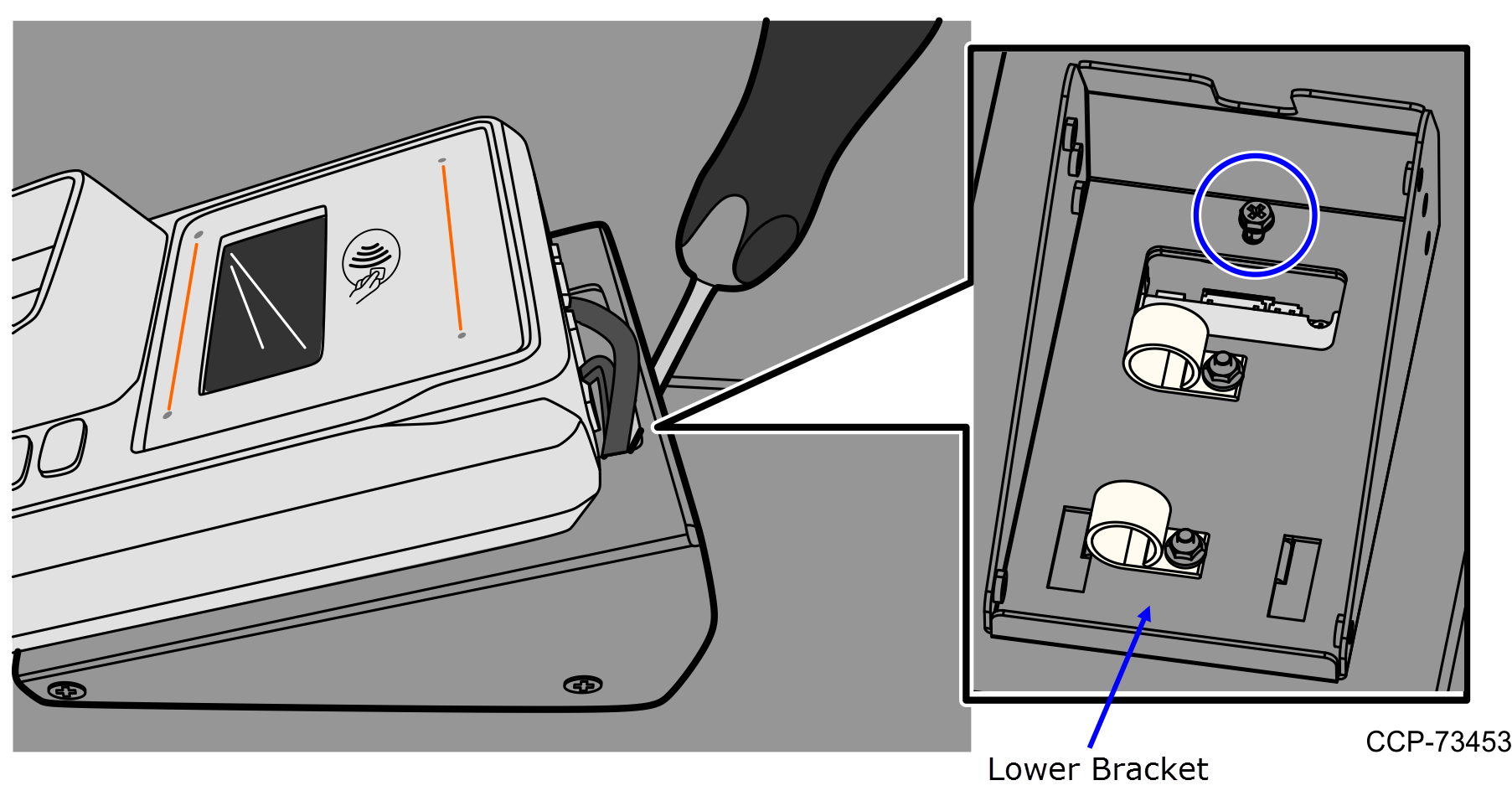

5. Mount hooks of the E-Money Terminal assembly to the SelfServ Checkout upper enclosure to lock in place and then secure using a screw.
