Installing Ingenico ISC250 PIN Pad

To install the Ingenico ISC250 PIN Pad on the PIN Pad Mount, follow these steps:

1.Install the PIN Pad Mount to the NCR SelfServ™ Checkout unit, if necessary. For more information, refer to Installing Ingenico ISC250 PIN Pad Mount on 7350 Unit.

2.Connect the data and power cables to the PIN Pad and then insert the cables through the hole on the PIN Pad mount.

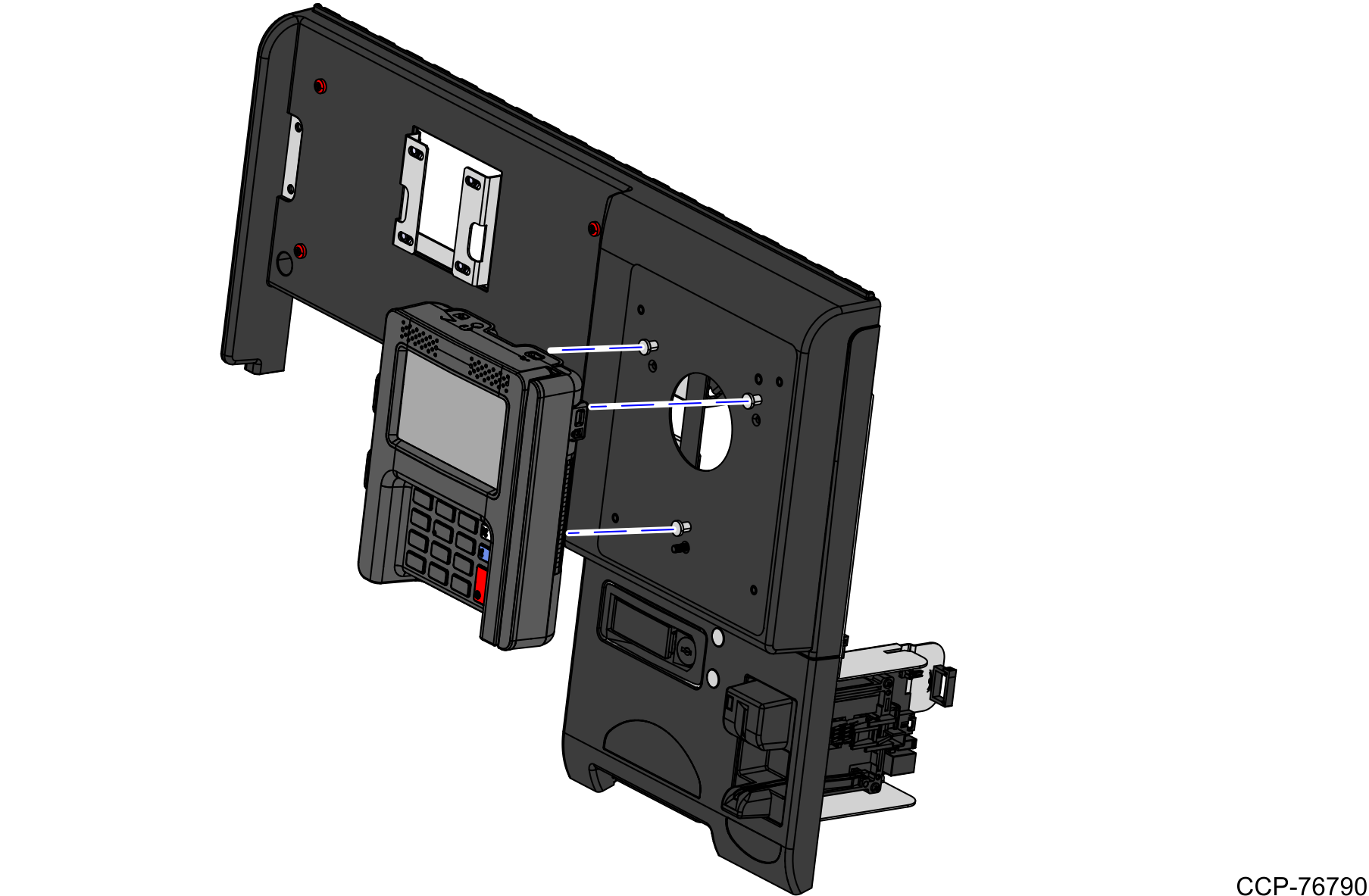

3.Mount the PIN Pad on the PIN Pad mount by hooking the keyholes to the mushroom studs on the mount, as shown in the image below.

4.Route the PIN Pad cables. For more information, refer to Routing PIN Pad Cables.
