Setting Note (Bill) Length and Width

Note:  Two models of note cassettes exist. Inspect the part number on the bottom of the cassette to determine which Length setting to use. The label indicates KD03243-C500 or KD03243-C520. Appendix BFujitsu F53 Denominations Dispensed contains a table of length and width settings for each released country and note denomination.

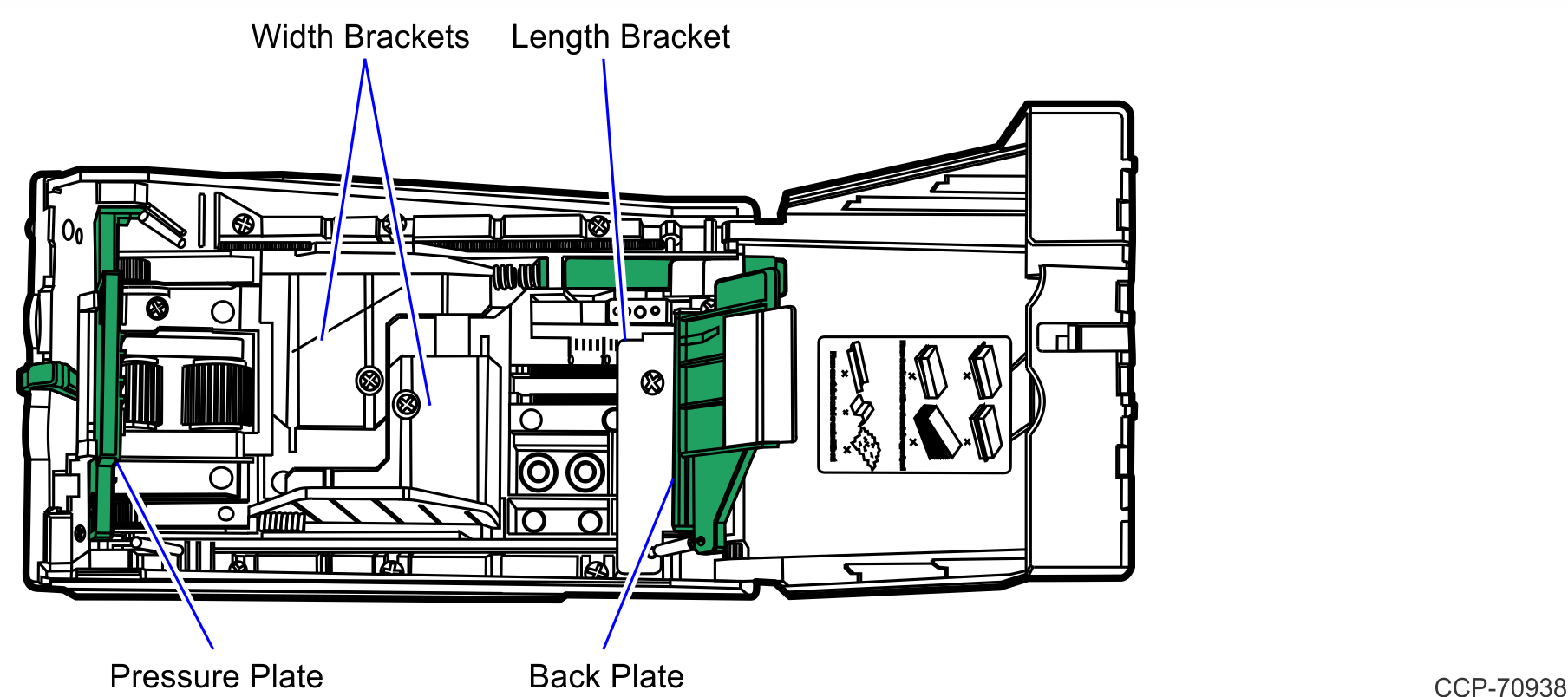

1.Lift both the Pressure Plate and Back Plate to the up position.

2.Loosen the screw on the Length bracket and slide it to the back of the cassette.

3.Loosen the two screws on the Width brackets and slide them out to their fully extended positions.

4.Do the following:

•Setting Note Width.

•Setting Note Length.
