Installing GSR50 Notebox (Cashbox) Security Door
To install the GSR50 Notebox (Cashbox) Security Door, follow these steps:
1.Install the GSR50 Notebox (Cashbox) Security Door Lock. For more information, refer to Installing GSR50 Notebox (Cashbox) Lock.

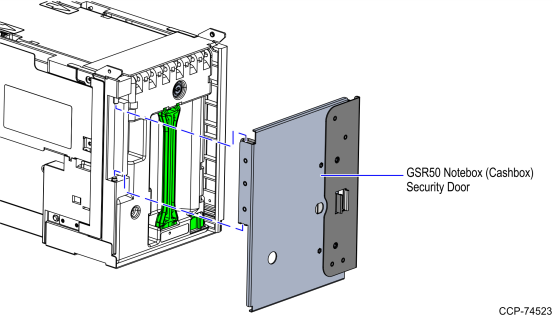

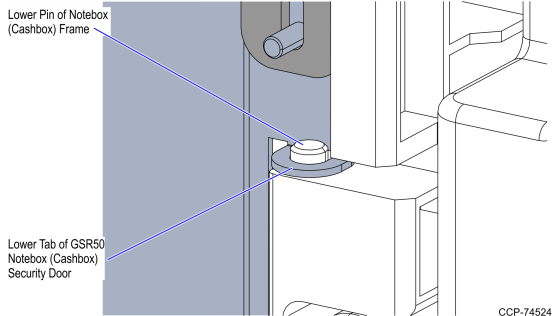

2.Place the lower tab of the GSR50 Notebox (Cashbox) Security Door over the lower pin of Notebox (Cashbox) frame.
3.Slide the upper tab of the Security Door upward to capture the upper pin of the Notebox (Cashbox) frame.
4.Secure the upper tab of the Security Door using hex nuts and torque the nuts to 20in/lbs.
5.Install the Lock Mini Cam to the Security Door lock hole using a key in a vertical position as shown in the image below. Make sure that the key can rotate to 1/4 turn counter clockwise as shown in the image below.
6.Secure the Lock Mini Cam to the Security Door using a retainer nut and torque the nut to 4Nm or 35in/lbs.
7.Attach the Security Door Cam to the Lock Mini Cam using a screw and torque the screw to 4Nm or 35in/lbs. The key should be in the vertical position when the cam is installed and can rotate to 1/4 turn clockwise as shown in the image below.
8.Close the Notebox (Cashbox) Security Door.
9.Do any of the following, if necessary:
